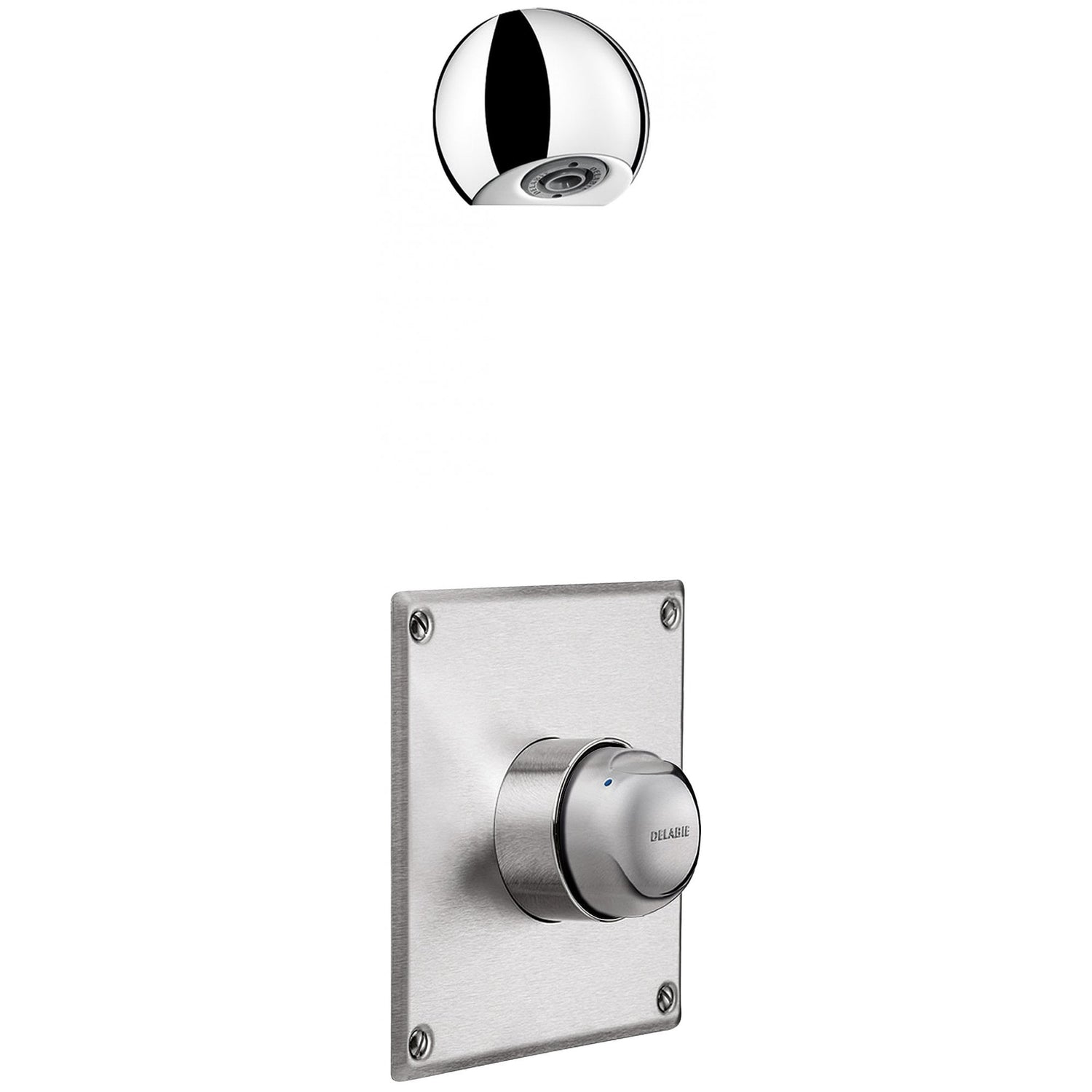

790709 TEMPOMIX Time Flow Shower Kit

• Chrome Plated Time Flow Shower Kit
• Recessed | Depth Adjustable (28 to 48mm)
• Soft Touch Operation
• Time Flow ~30 Seconds
• TEMPOMIX ¾" single control mixer
• Up To 80% Water Saving
• Flow Rate at 3bar: 6lpm
• Ligature-Resistant Collar
• Scale Resistant Nozzle | Automatic Flow Regulation
• Temperature control via the push-button
• Connector: M½" connectors for copper tubes Ø 14mm
• Suitable for People with Reduced Mobility

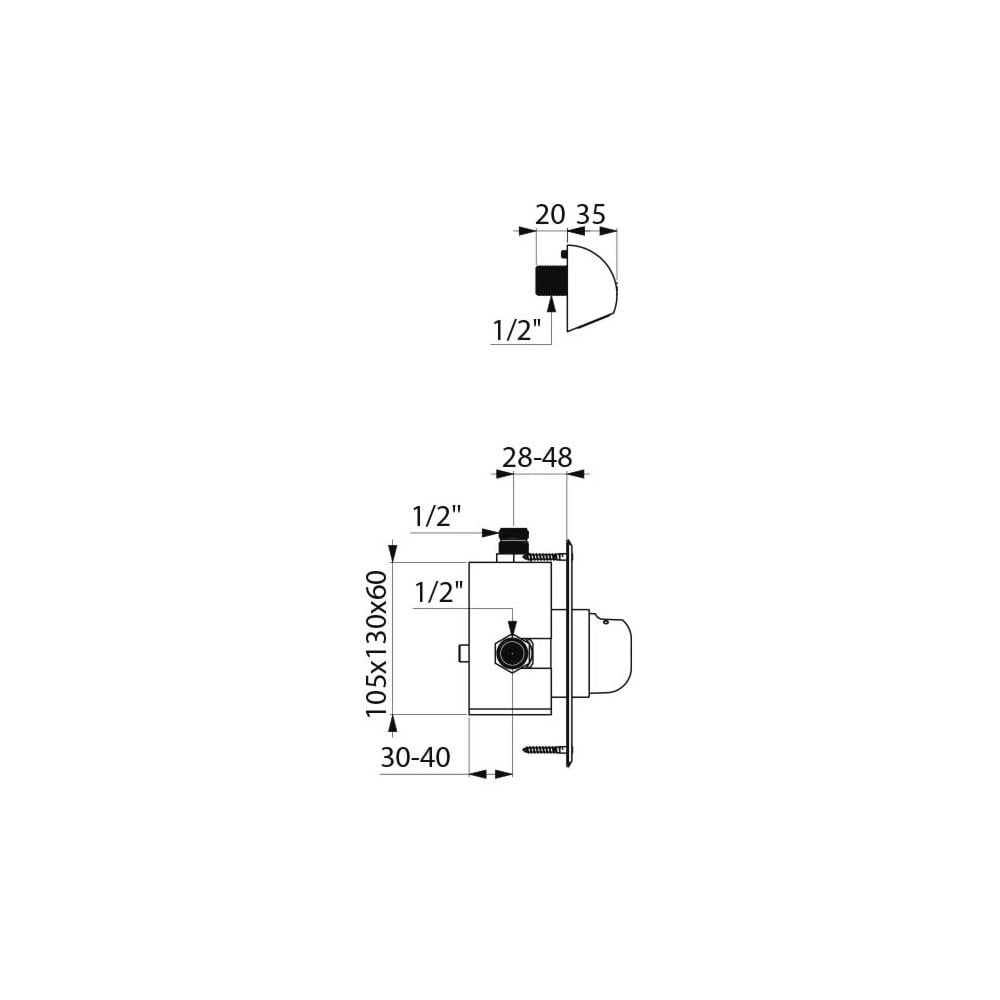

• Shower Head Dimensions: 35D (mm)
• Push Button Dimensions: 160H x 160W (mm)
• 10 Year Warranty

790709 TEMPOMIX Time Flow Shower Kit

The DELABIE TEMPOMIX is a recessed time flow shower kit available in an chrome plated brass finish. 790709 will shut off ~30 seconds after the button has been pressed to prevent water waste, with a saving of up to 80%. The flow rate is set to 6 lpm per 3 bar. A soft touch operation makes this unit suitable for people with reduced mobility and ideal for installation in high finish washrooms. Includes a scale resistant nozzle and an automatic flow regulator. M½" connectors for copper tubes Ø 14mm.  For more information, please refer to the spec sheet provided below in the download section.

10 Year Guarantee

Shower Head Dimensions: 35D (mm)

Push Button Dimensions: 160H x 160W (mm)

*This model does not have a waterproof recessing box. The installer must ensure that the recessing area is waterproof and any leaks or condensates can drain away (see installation guide).*

Spec Sheet-790709-DELABIE-TEMPOMIX Time Flow Shower Kit(PDF)
