Protronic S: AQUA130 / AQUA134 with Mixer on Sensor Tap

• Operation (model dependent): Mains supply (in wall 230 V AC); Battery supply (lithium battery CR-P2 6V)
• Flow rate at 3 bar: 6 lpm
• Guarantee: 2 years
• Type of water temp. mixing: Adjusted by user at tap
• Connector: G3-8
• Mounting: Deck mounted - tap hole Ø 35mm
• Minimum/Maximum flow pressure: 1bar / 10bar (3 bar recommended)
• Comes with ability to hygiene flush the system.

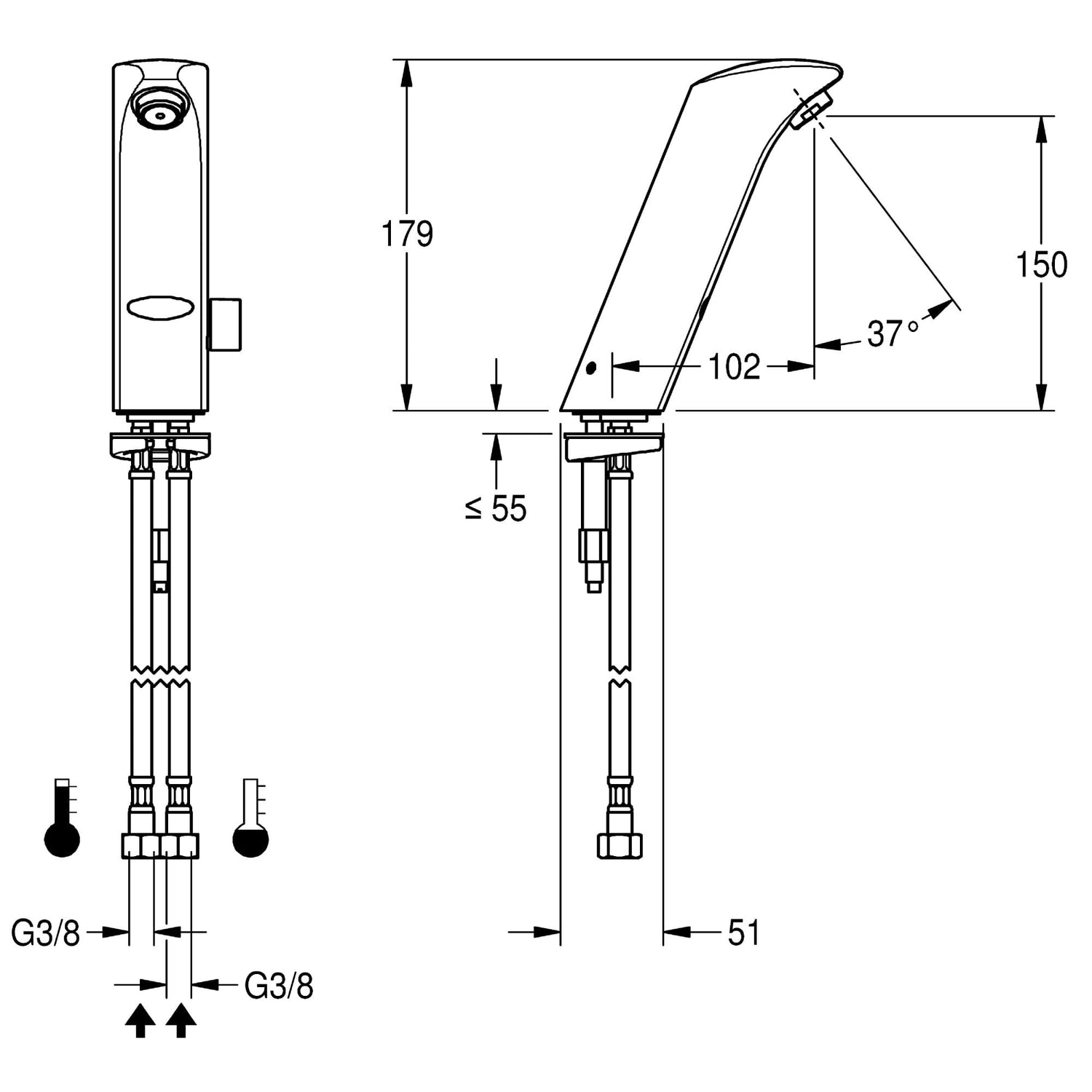

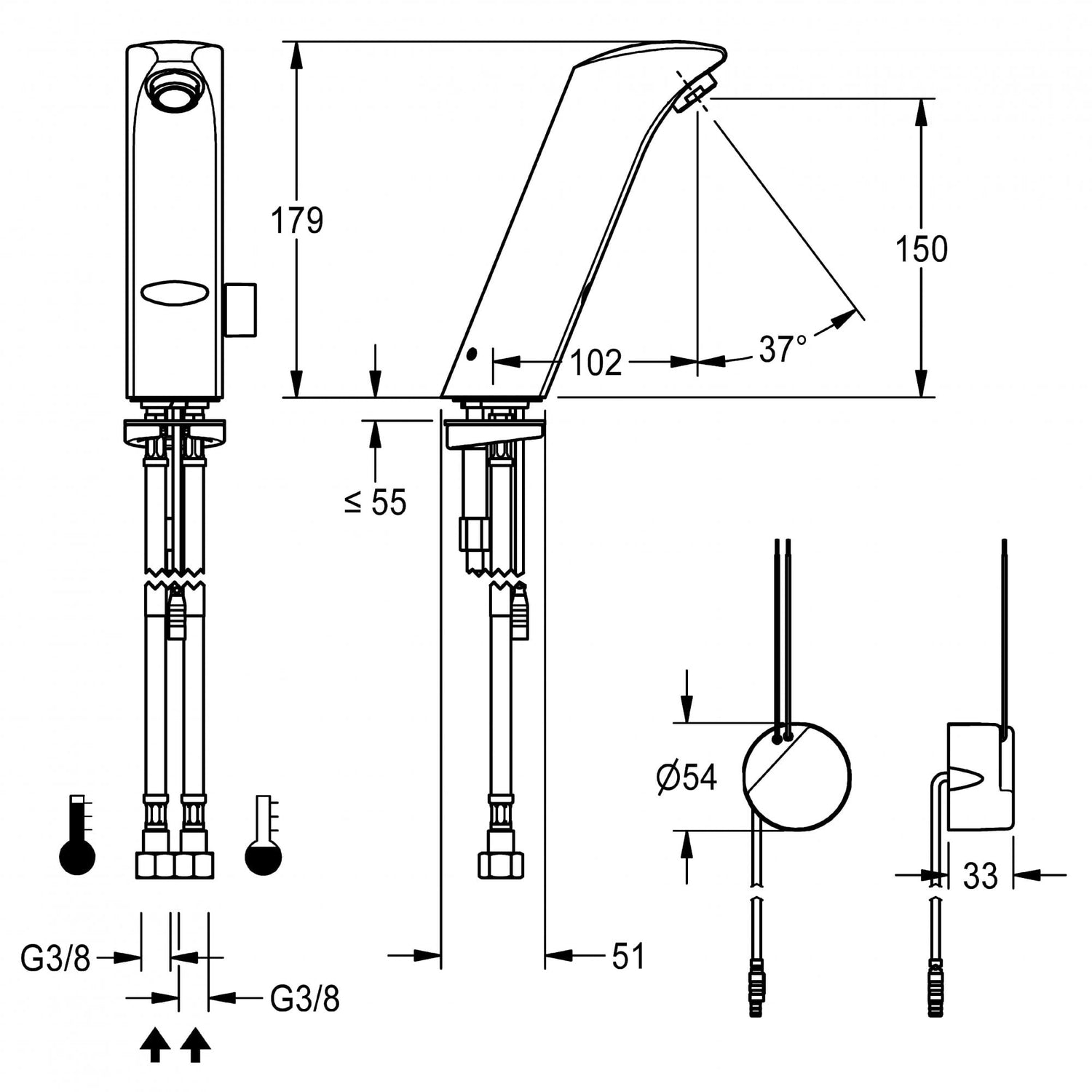

• Dimensions: H179mm x W51mm x D145mm (102mm spout projection)
• Polished chromium-plated brass
• 2 sensor operation settings
• Electronic servicing information
• Protective shutdown included
• IP65

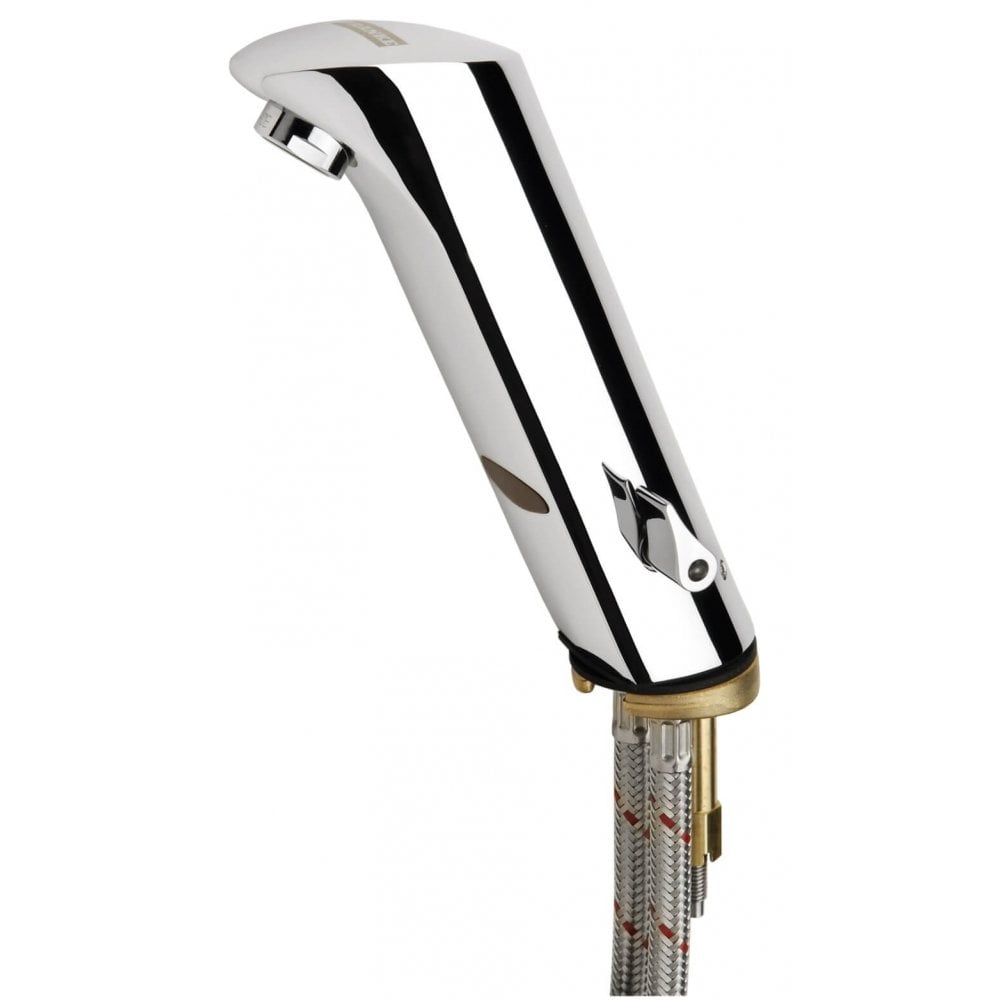

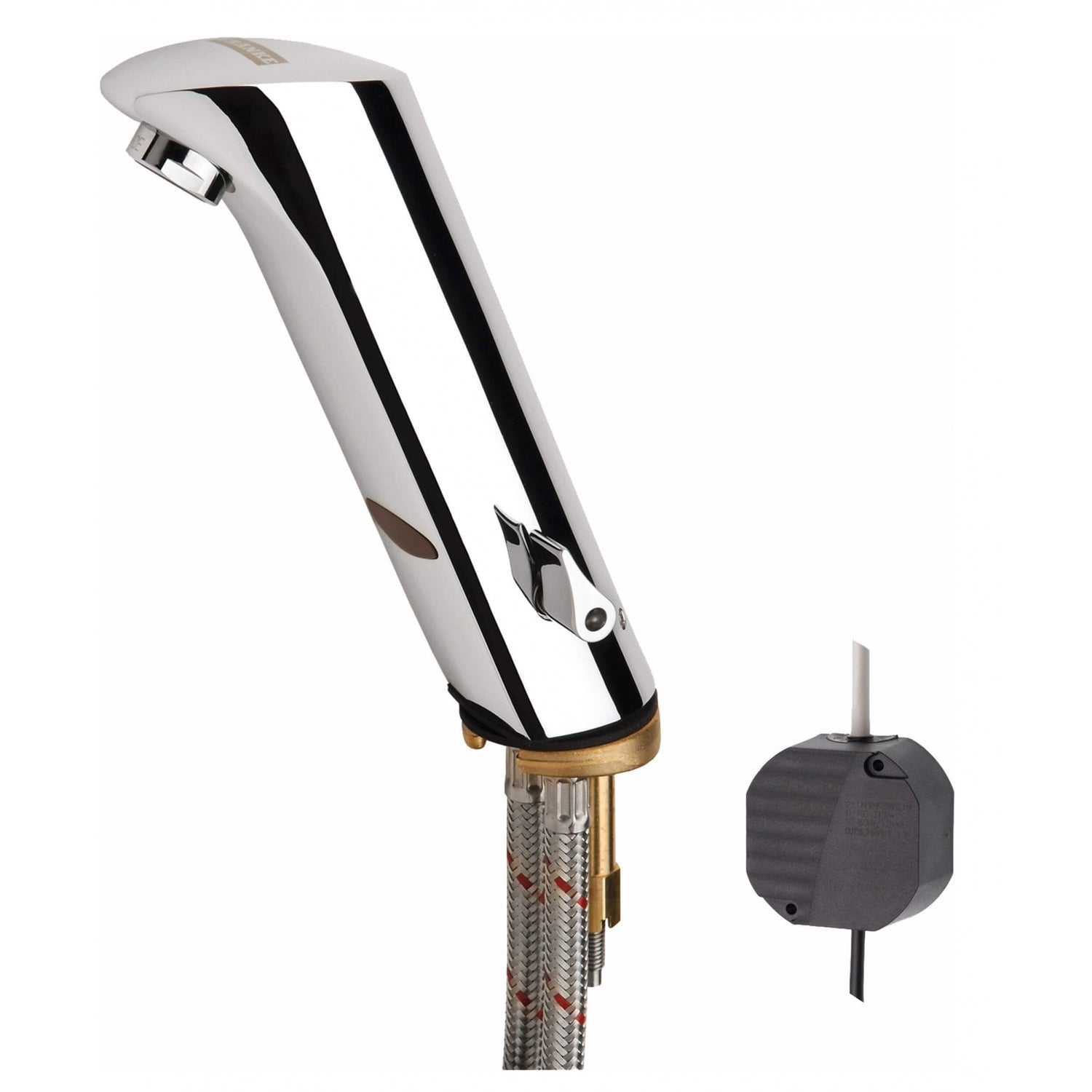

A mixer tap, the Franke Aqua130 or Aqua134 is an attractive piece which allows both hot and cold water to be connected direct.  The user adjusts the temperature lever on the side of the tap for their own comfort. The difference in models is a choice of battery or mains power source. A theft proof aerator with integrated flow regulator assist a low water flow rate of 6 lpm, ideal for water saving during each use. Made from brass with a solid polished chrome plated finish, it comes complete with durable, vandal resistant properties.

The maximum water temperature can be set at the mixer lever. The temperature can also be fixed and the mixing lever completely removed via a conversion set. This is a great safety feature, as well as allowing for control of energy savings.

For peak performance the recommended water pressure used with this tap is 3 bar. However, there’s a degree of flexibility to suit a host of locations with a minimum and maximum water pressure range between 1bar and 10bar.

A hygiene flush clears out any stagnant water left in the system after a period of 24hours of non-use.  This 10 second flow can be set on or off depending upon the location’s requirements.

The sensor can be programmed to detect either a static or a moving object. This allows for specific differences in washroom locations for things like reflections from washbasins.

The tap will show information such as status of the hygiene flushing and last flush-process in hours.  Idea for facilities managers to monitor servicing requirements.

To prevent vandalism and misuse, the tap will only run for 60 seconds of continuous activation.

Delivery

• UK - All orders over £100 ex VAT are FREE delivery to UK mainland addresses and £4.99 ex VAT under £100 ex VAT.
• UK - Guaranteed Next Working Day delivery or a weekend delivery are available, please contact us.
• EU - Republic of Ireland standard delivery time is 3 - 4 business days.
•  EU - All other EU countries (excluding Republic of Ireland) standard delivery time is 5 - 7 business days.
• Orders placed on business working days (Monday - Friday) before 15:00 will be dispatched to arrive during the next business working day(s) (unless otherwise stated). 
• Orders placed on non-business days (Saturday and Sunday) will be processed on a Monday (except Bank Holidays) and treated as an order placed Monday before 15:00 (unless otherwise stated).
• Please note that all orders that require international deliveries outside of the UK, including Republic of Ireland, will be subject to a European / international delivery charge, which will be added to your order once the delivery address has been entered at checkout.
• Please help us deliver your order as efficiently as possible by providing a telephone number (preferably a mobile number) and direct email when placing your order on our website so our parcel carriers can contact you, should they need to.
• For more information on delivery click here. Please also see our terms and conditions.

Returns

Here at Intelligent Facility Solutions Ltd we are confident that our products will exceed expectations, however, if you feel you have a valid reason to return the hand dryer(s) or other products please contact us in the first instance to receive a unique returns number. Either call 0114 3540047 or email returns@ihdryers.co.uk

We offer a 90-day period from purchase where you have the option to return the goods

Please review our full returns policy here

Spec Sheet / Catalogue Page - Franke AQUA134 Protronic-S Sensor Tap (PDF)
Install and User Manual - Franke AQUA134 Protronic-S Sensor Tap (PDF)
Spec Sheet / Catalogue Page - Franke AQUA130 Protronic-S Sensor Tap (PDF)
Install and User Manual - Franke AQUA130 Protronic-S Sensor Tap (PDF)
