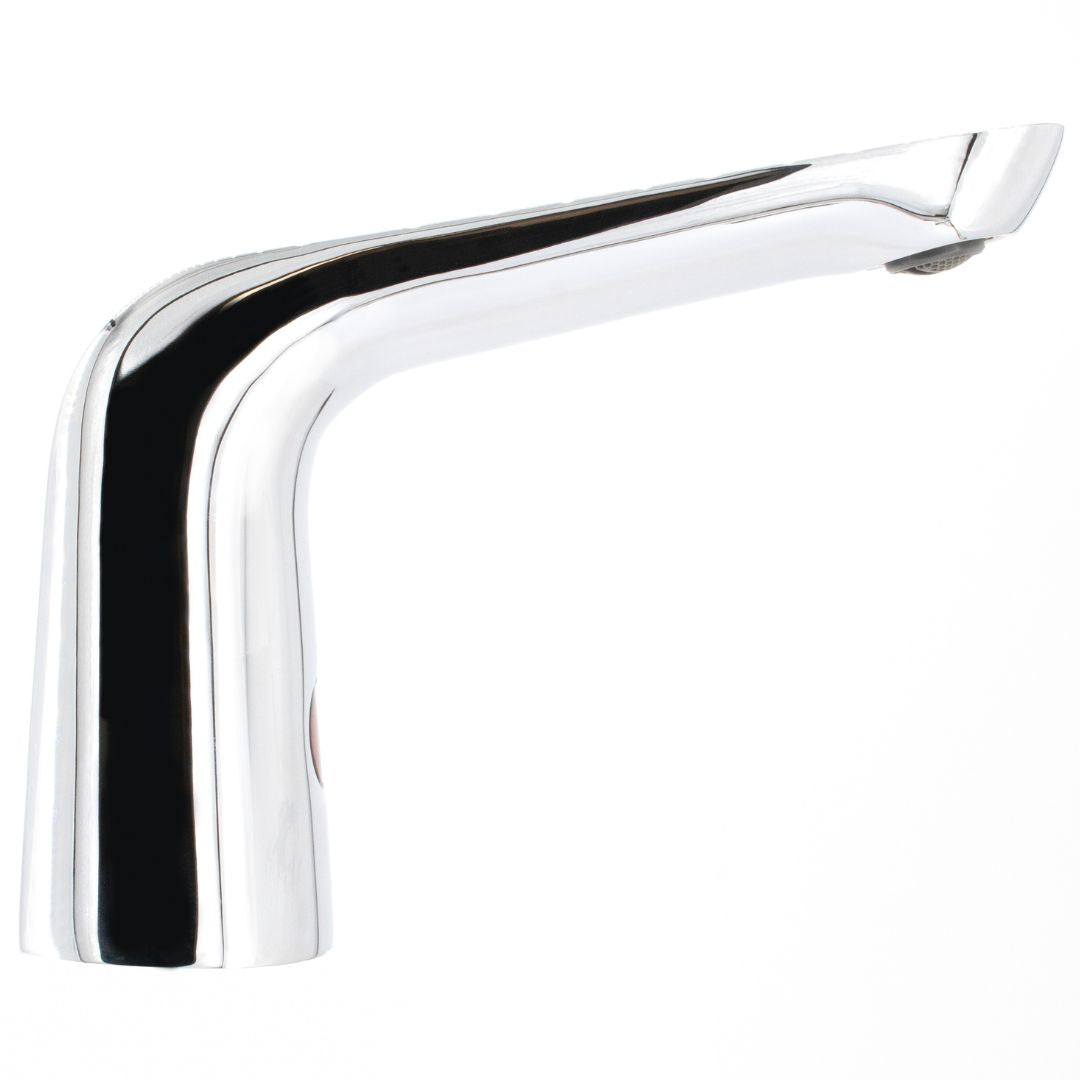

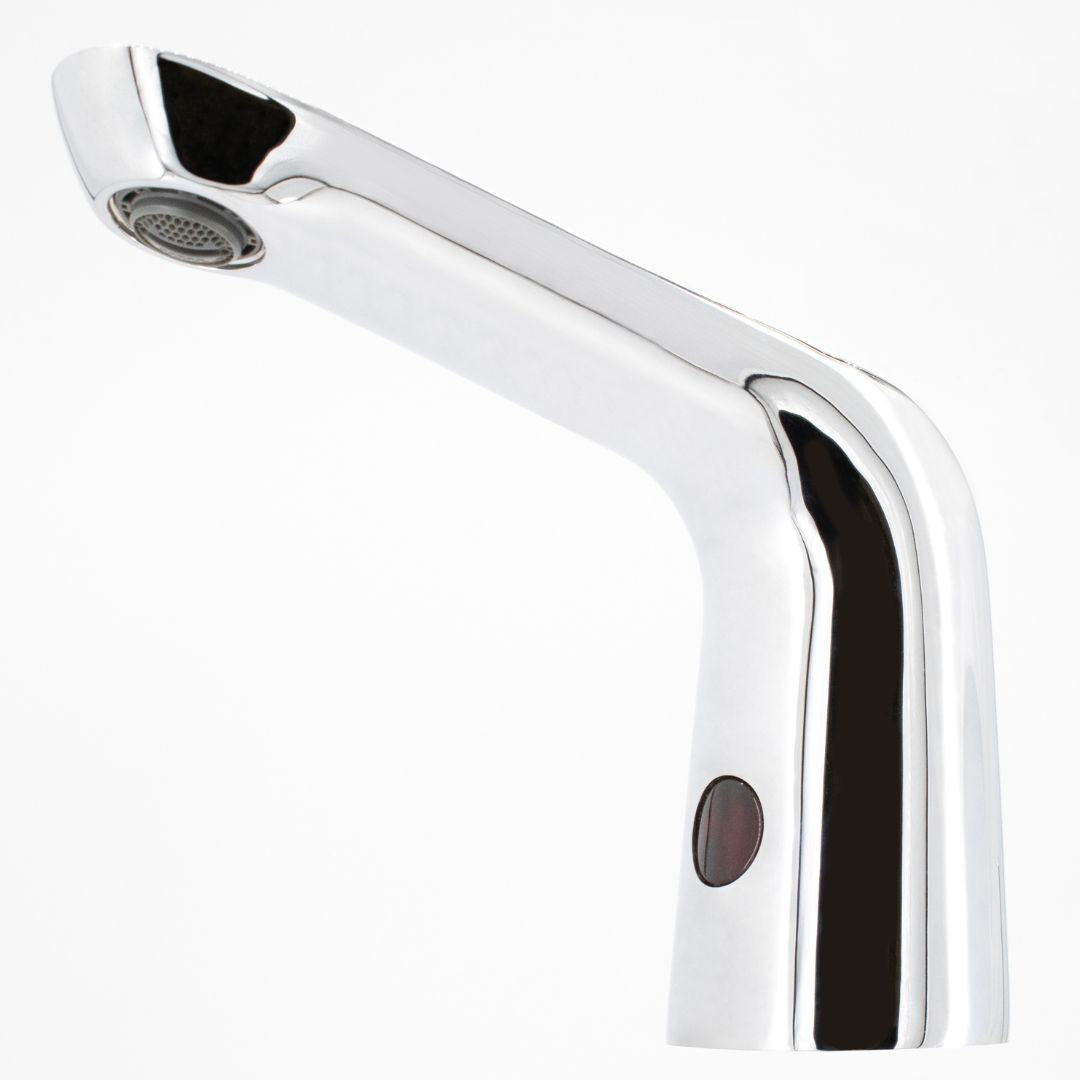

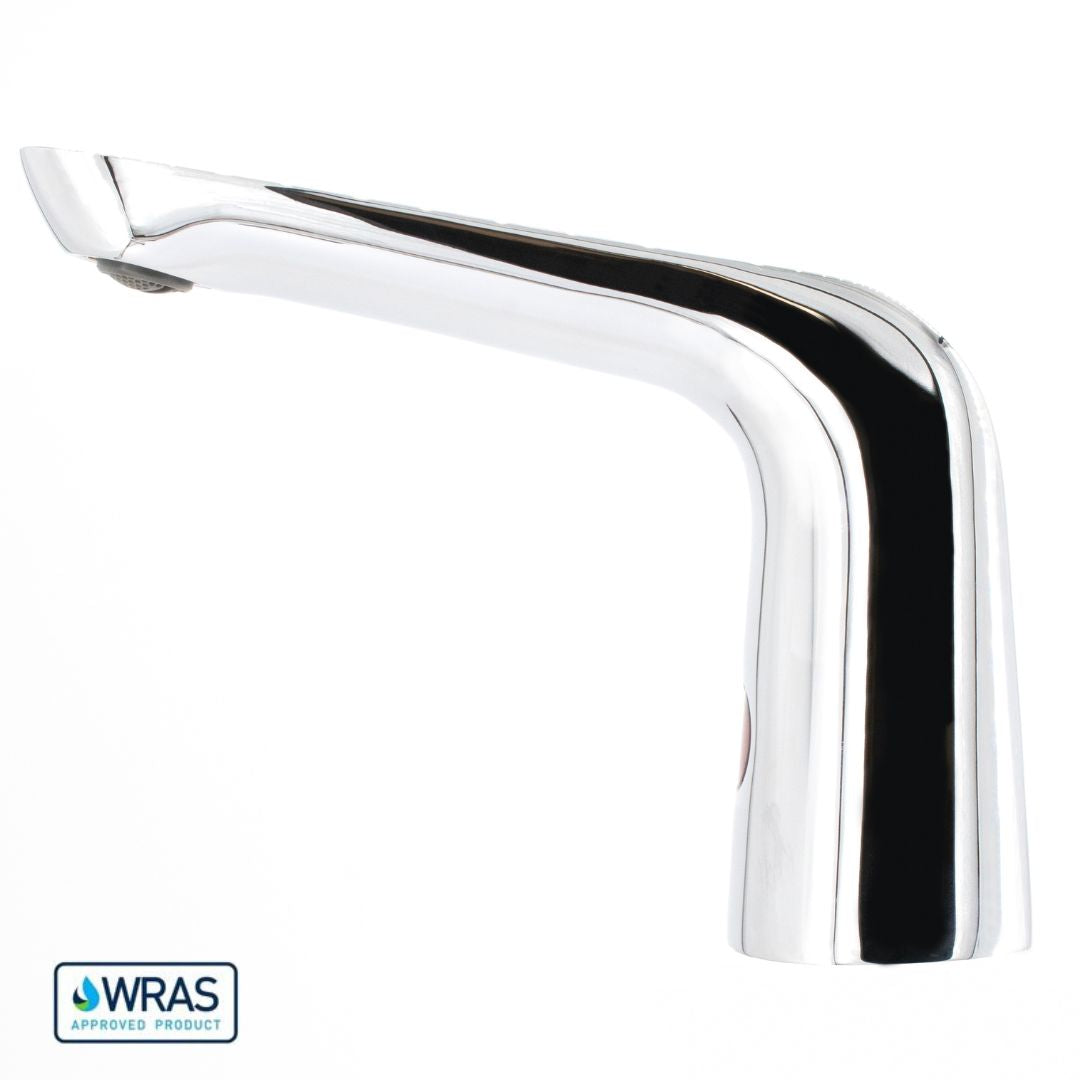

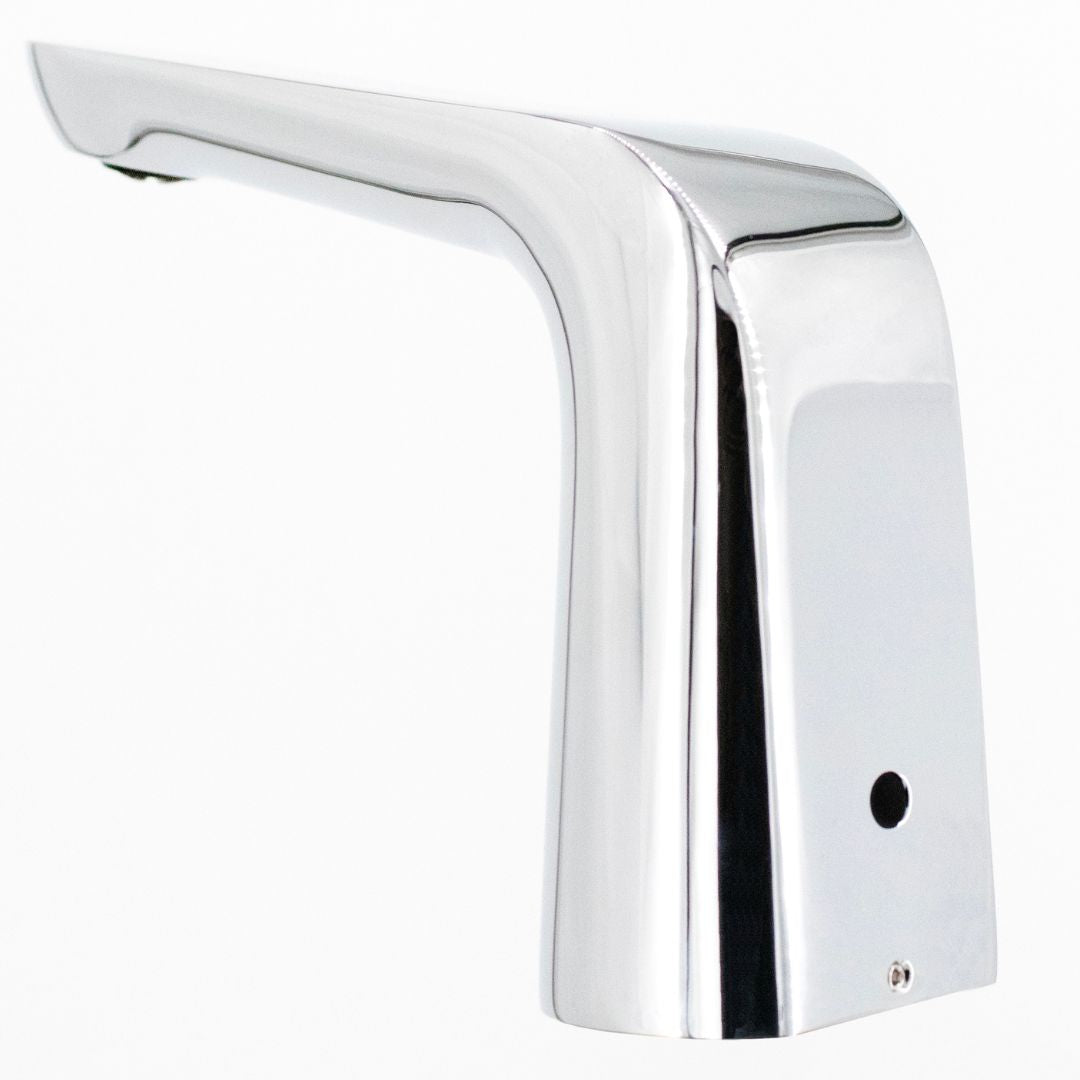

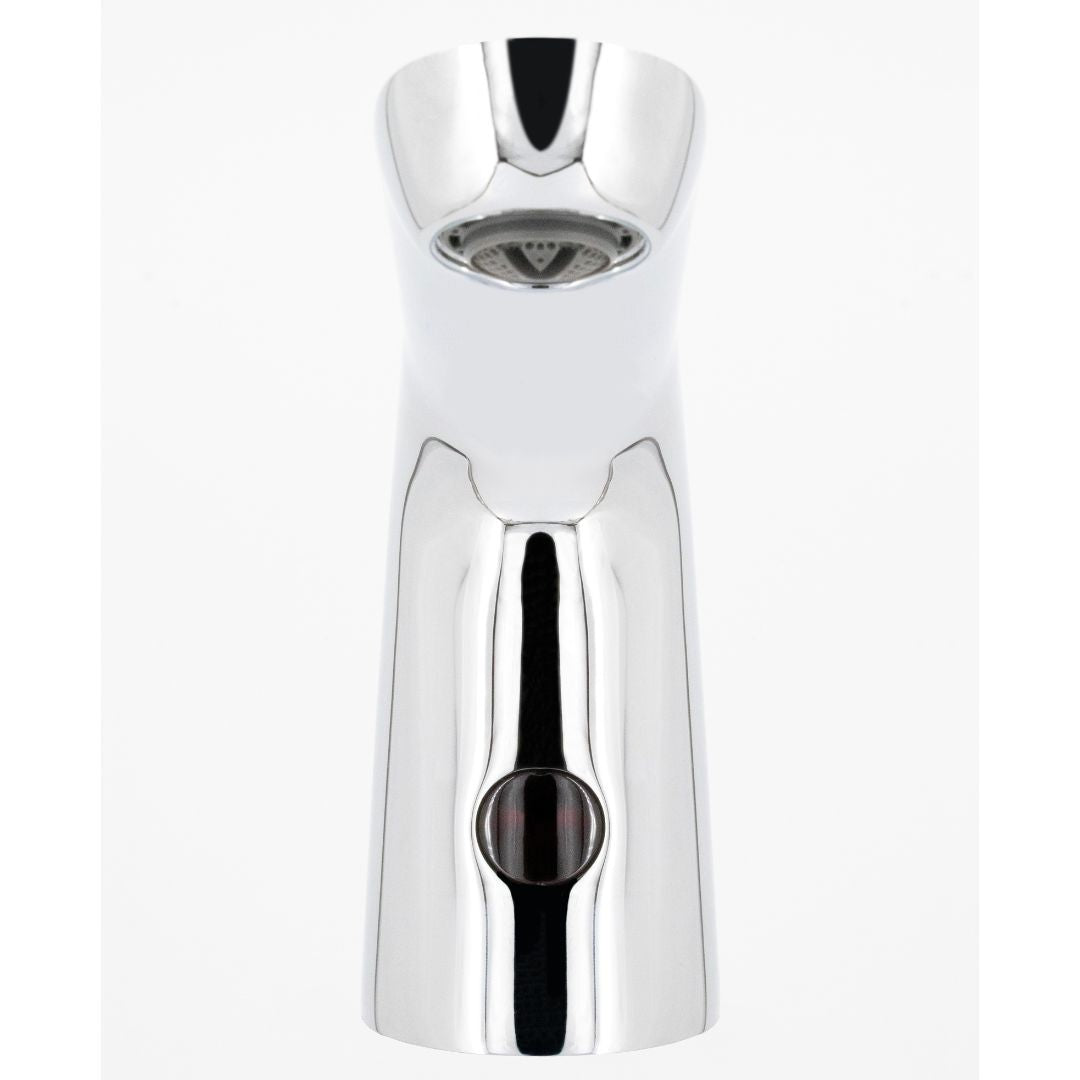

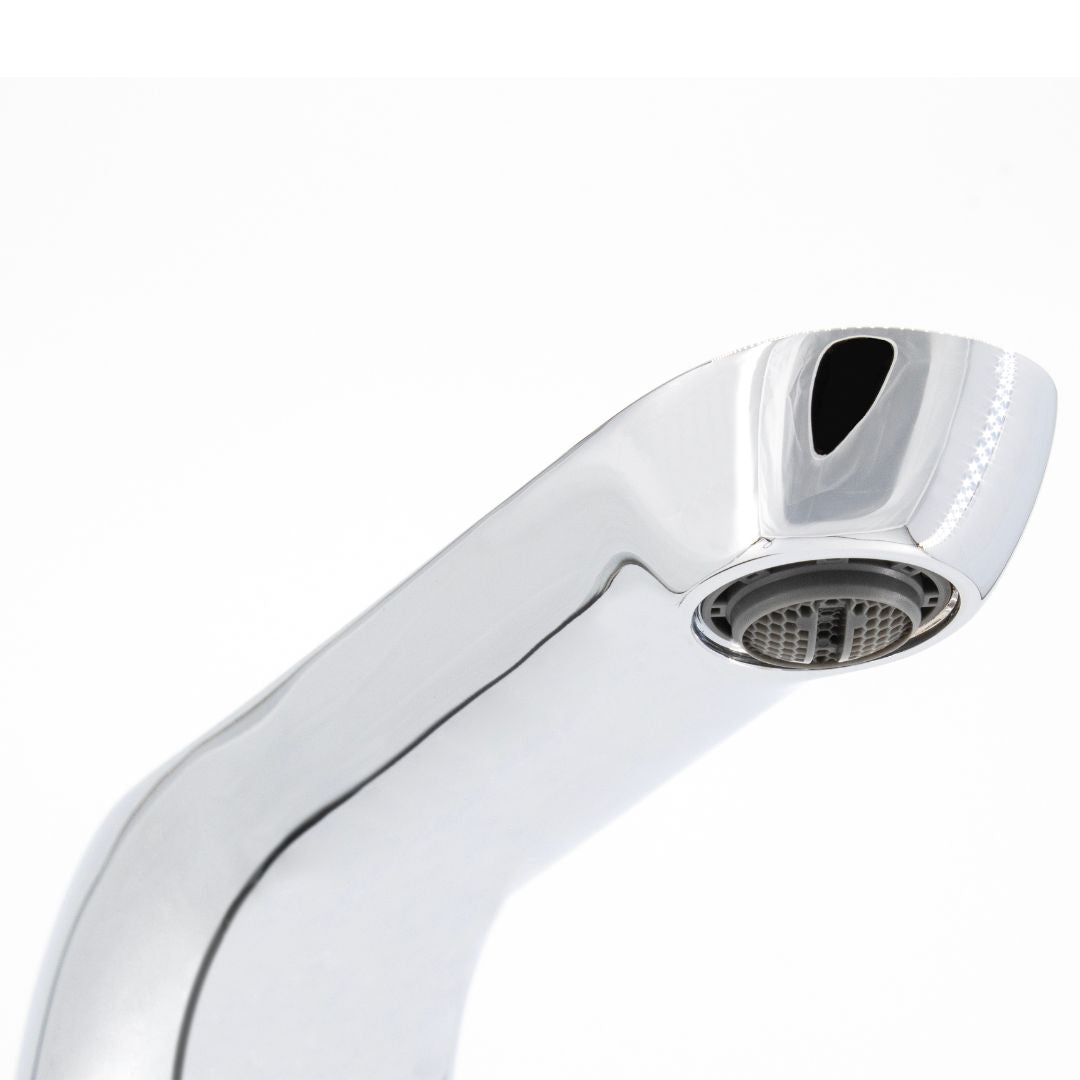

Prestige PRST02 WRAS Approved Sensor Tap (2 power supply options)

• Two versions to choose from (need help deciding which option? See description section):
  1. BATTERY only: Included control box is for battery only supply (4 X 1.5 AA Alkaline batteries (6V) *not included*)

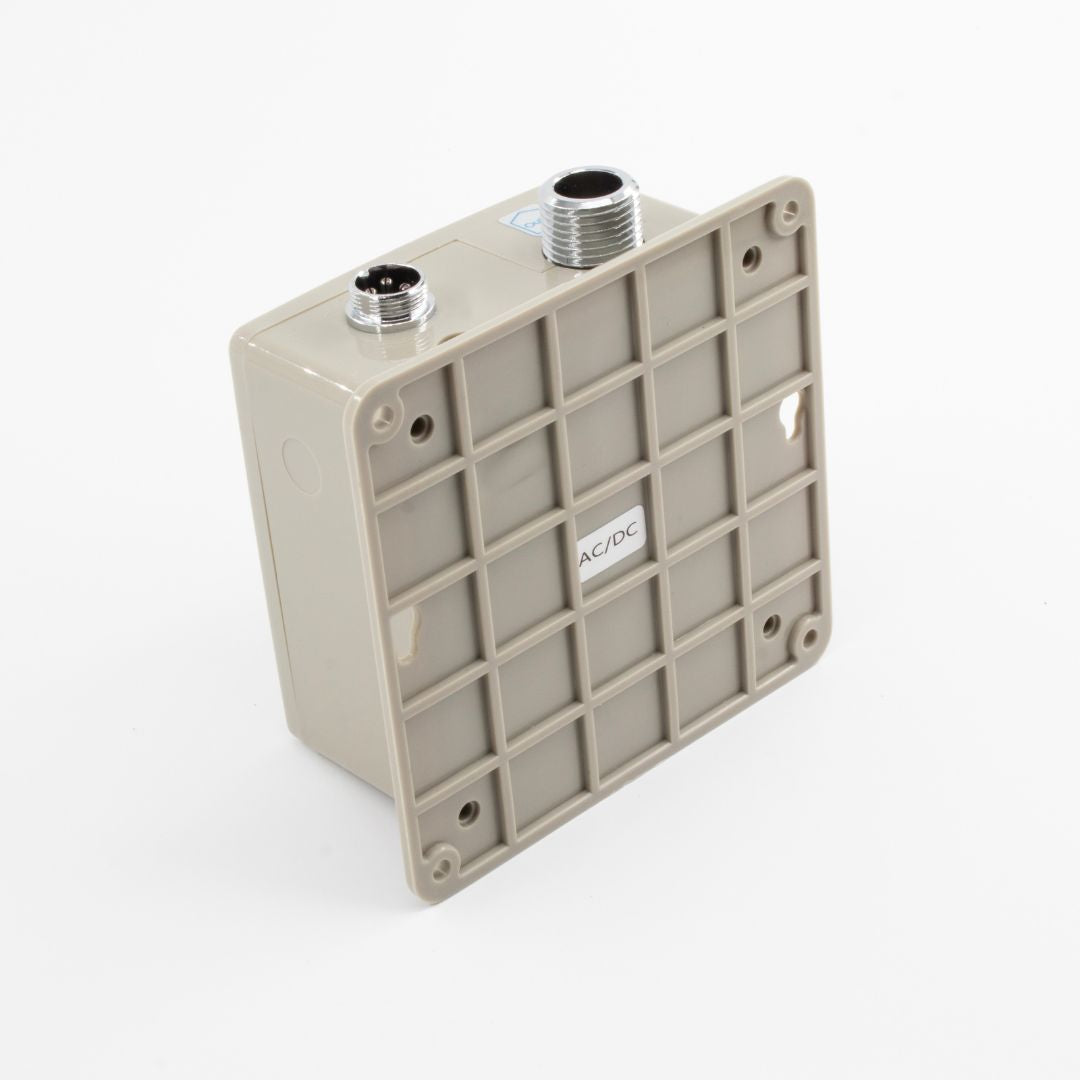

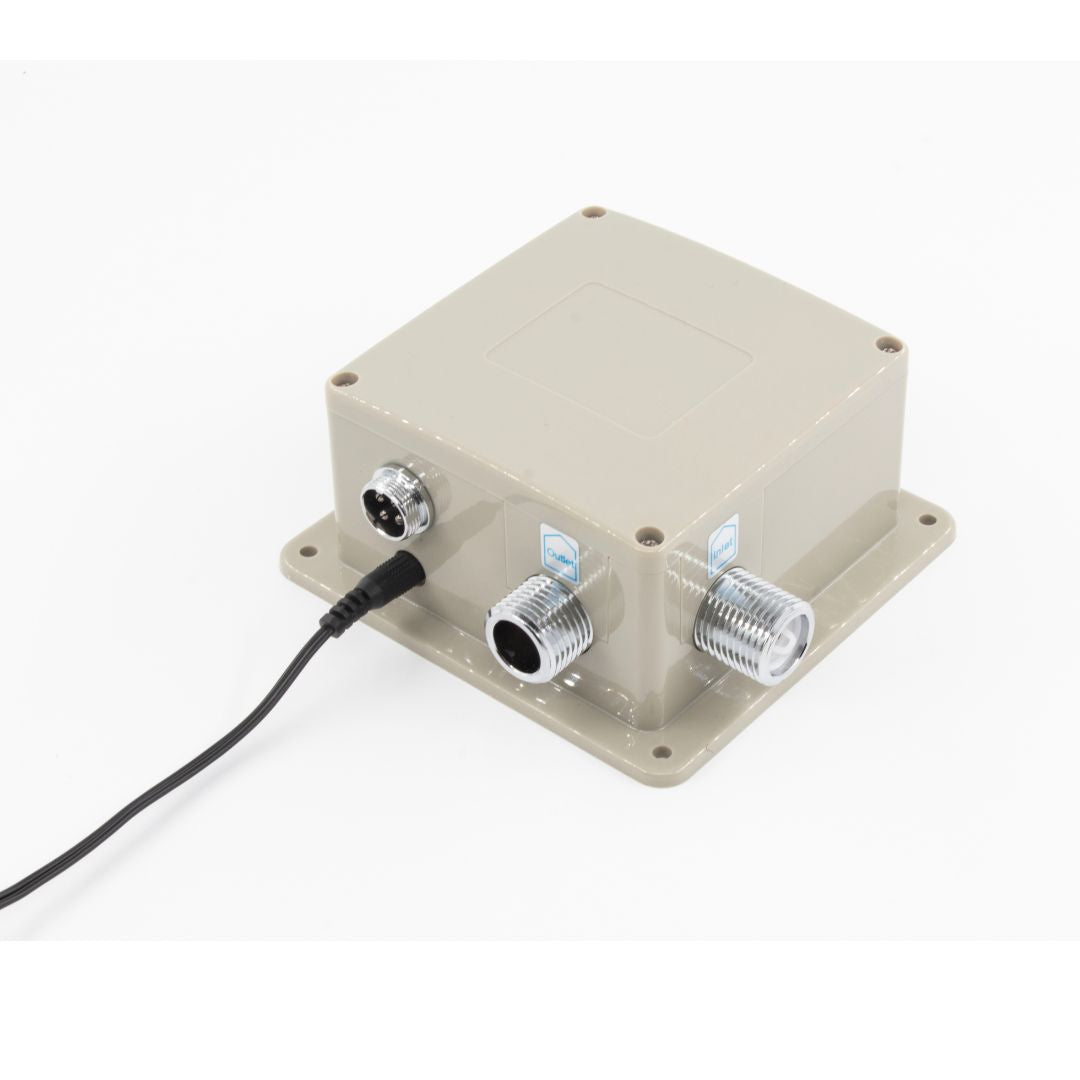

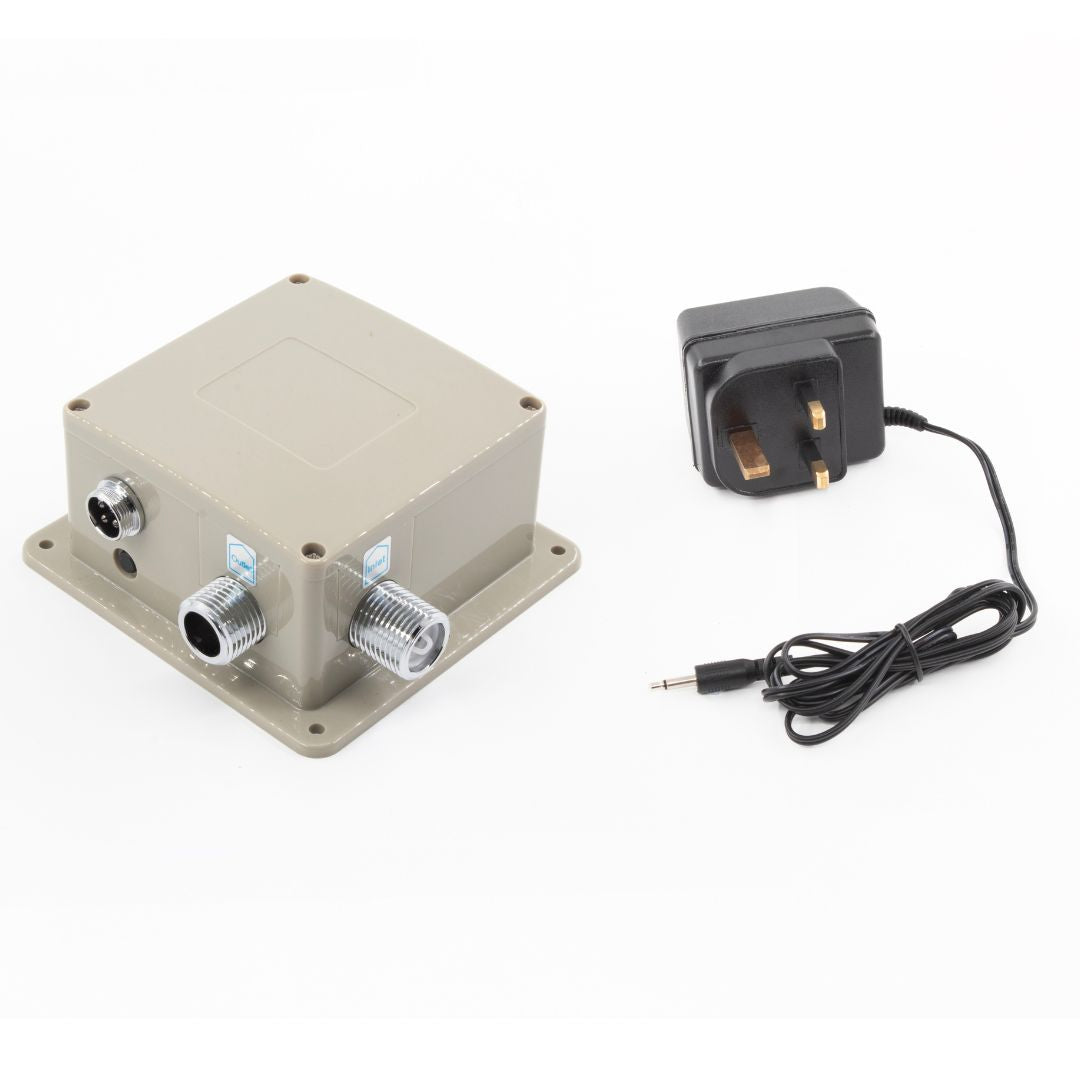

  2. BATTERY or Mains: Included control box is for battery supply (4 X 1.5 AA Alkaline batteries (6V) *not included*) or included mains transformer supply (220 V-240V/50Hz)
• Material: Brass with Chrome Plated Finish
• Opening / Closing time: Open <1s; Close <1.5s
• Flow rate at 3 bar: 5.7 lpm
• Type of water mixing: Cold or premixed via Thermostatic Mixer
• Max water temp: 75 °C
• Connector: 1/2"
• Mounting: Deck mounted
• Minimum/Maximum flow pressure: 0.5bar / 8bar
• Sensor distance: 300 - 320 mm (Adjustable)
• Safety timeout protection: Auto shut off after 70 seconds of continuous sensor activation to prevent misuse
• WRAS Approved
• Dimensions: H149mm x D176mm x W61mm
• IPX7

The Prestige PRST02 Sensor Tap is a pinnacle of innovation and convenience for your modern washroom. Crafted from high-quality brass with a sleek chrome finish, it exudes elegance and durability. Engineered for efficiency, there are 2 power options to choose from; powered by 4 AA Alkaline batteries only or receive your tap with the option to use either batteries or included mains transformer. With lightning-fast response times of less than 1 second for opening and 1.5 seconds for closing, enjoy swift and precise water flow.

Its WRAS approval guarantees safety and compliance with regulations. Adjustable sensor distance, thermostatic mixing options, and automatic shutdown after 70 seconds of continuous use ensure optimal functionality and water conservation. Elevate your environment with the Prestige PRST02 Sensor Tap today!

Being WRAS approved it demonstrates compliance with the Water Supply (Water Fittings) Regulations or Scottish Byelaws which require that a water fitting should not cause waste, misuse, undue consumption or contamination of the water supply and must be ‘of an appropriate quality and standard.

Need help choosing which power option?

1. Battery Only

Benefits:

• No need for a nearby power outlet: Great for areas without access to electrical outlets, such as outdoor settings or older bathrooms.
• Easier installation: No wiring required, making it quicker and less expensive to install.
• Portability: Can be moved or reinstalled in a different location without worrying about power supply.
• No risk of power outages affecting operation: It continues to function even if there’s a power cut.
• Safer in wet environments: Reduced risk of electrical issues in areas exposed to water.

Considerations:

• You’ll need to replace the batteries periodically (depending on usage), which adds some maintenance.

2. Battery or Mains Transformer

Benefits:

• More flexible: You can switch between battery power and mains power as needed.
• Lower maintenance: When connected to mains power, you won’t have to worry about replacing batteries.
• Backup power: If there’s a power outage, you can switch to battery power and keep it functional.
• Cost-effective in the long term: Mains power can be cheaper than continuously replacing batteries.

Considerations:

• Requires a nearby power source for the mains transformer.
• Installation can be more complex if wiring is needed.

Spec Sheet - PRST02
