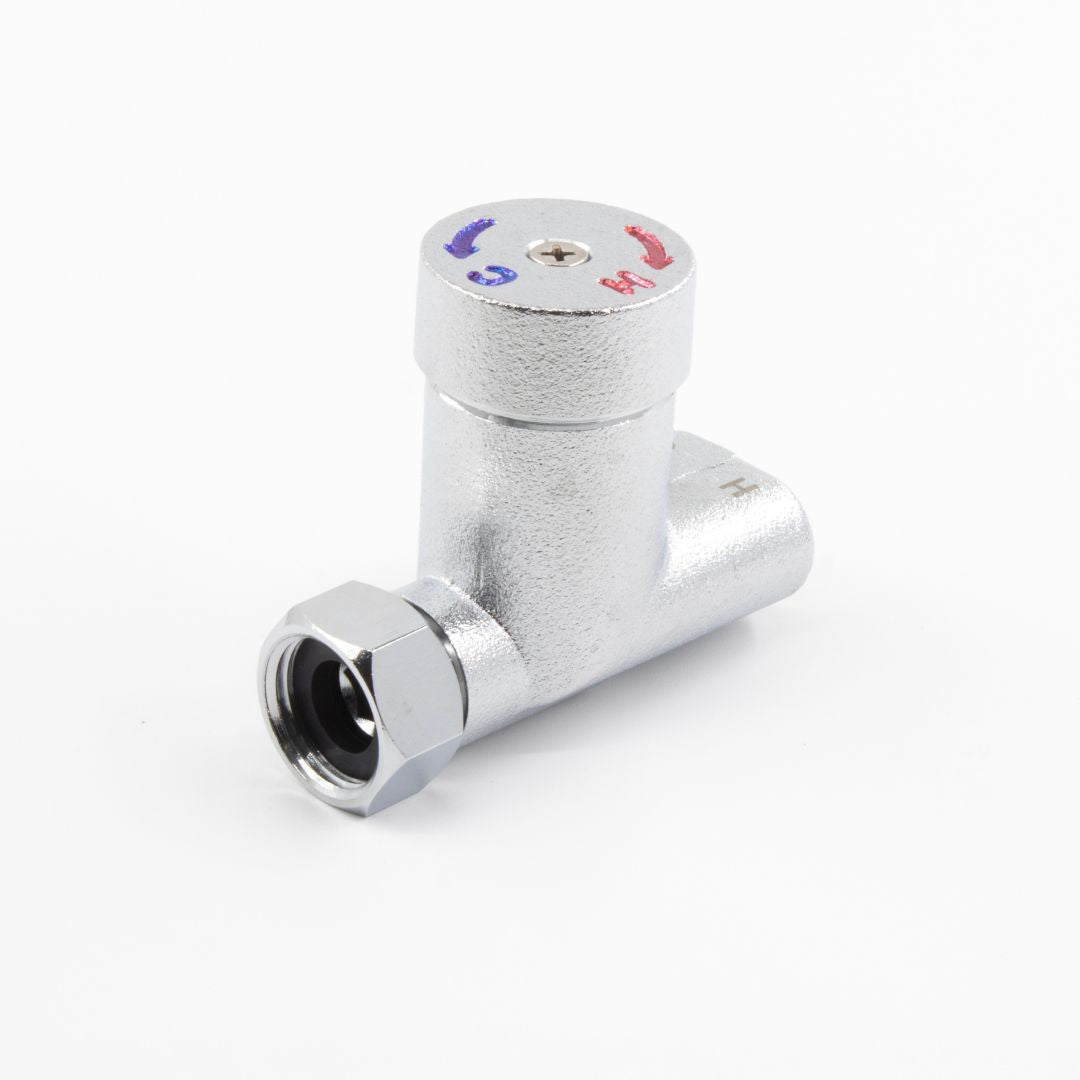

Prestige Thermostatic Mixing Valve for Sensor Taps

Manually premixes hot and cold water for automatic sensor taps that are not fitted with a mixer on the tap

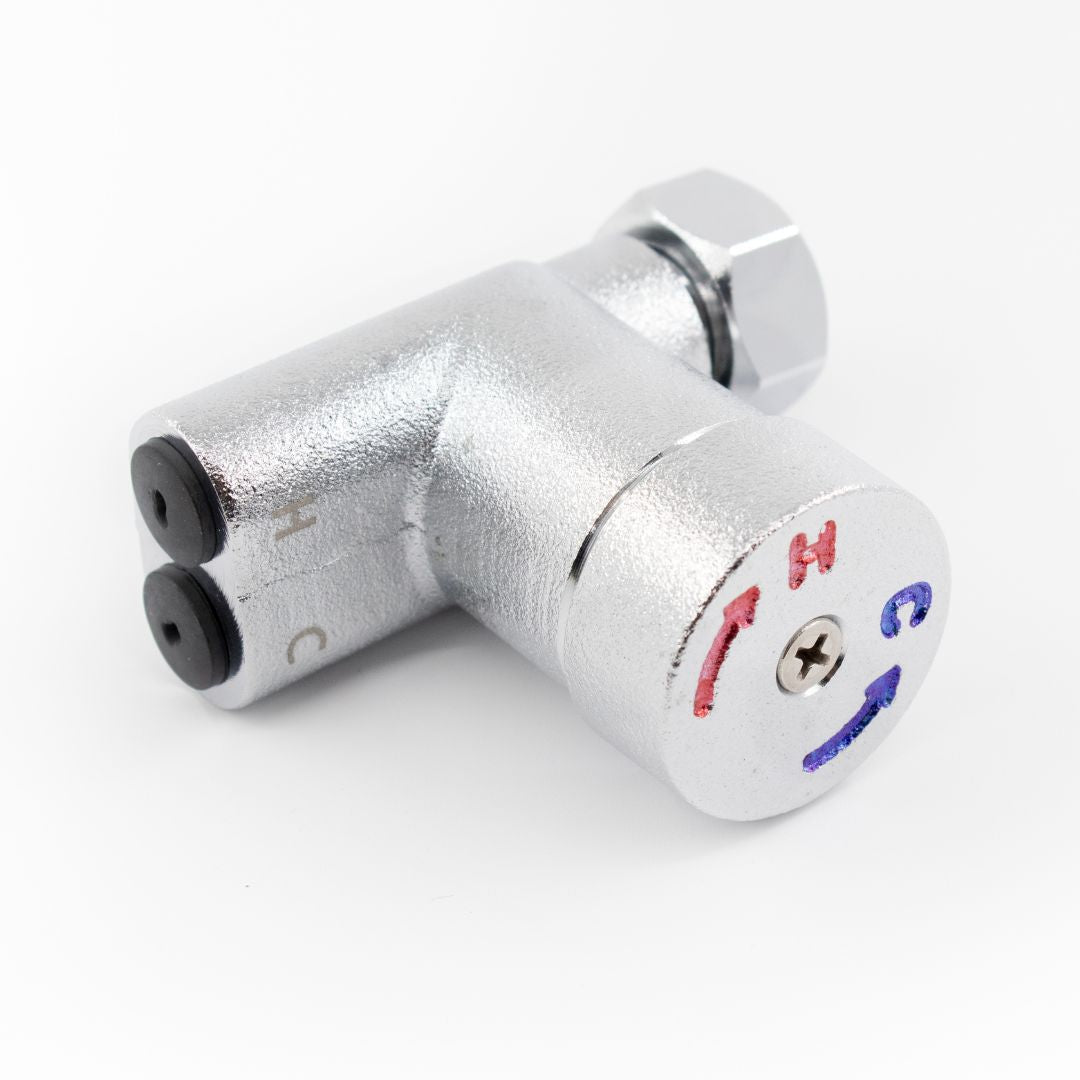

• The temperature is set by turning the top of the mixing valve to the required, safe temperature
• A built-in check valve prevents hot and cold water from flowing back and forth
• Cold water inlet temperature range: 4°C - 29°C
• Hot water inlet temperature range: 40°C - 85°C
• Recommended for 1 mixing valve per 1 tap
• Materials: Chrome plated Brass 59-1

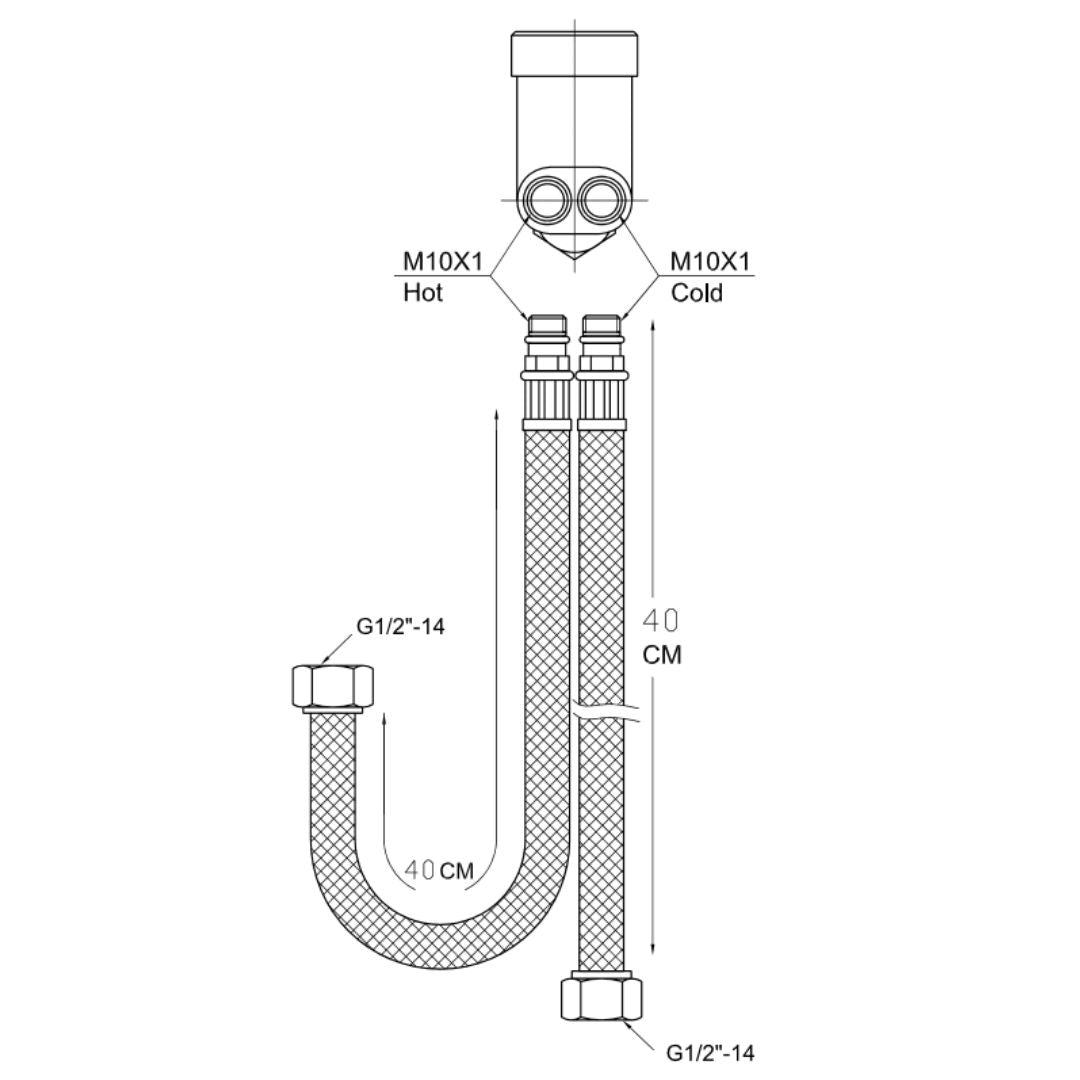

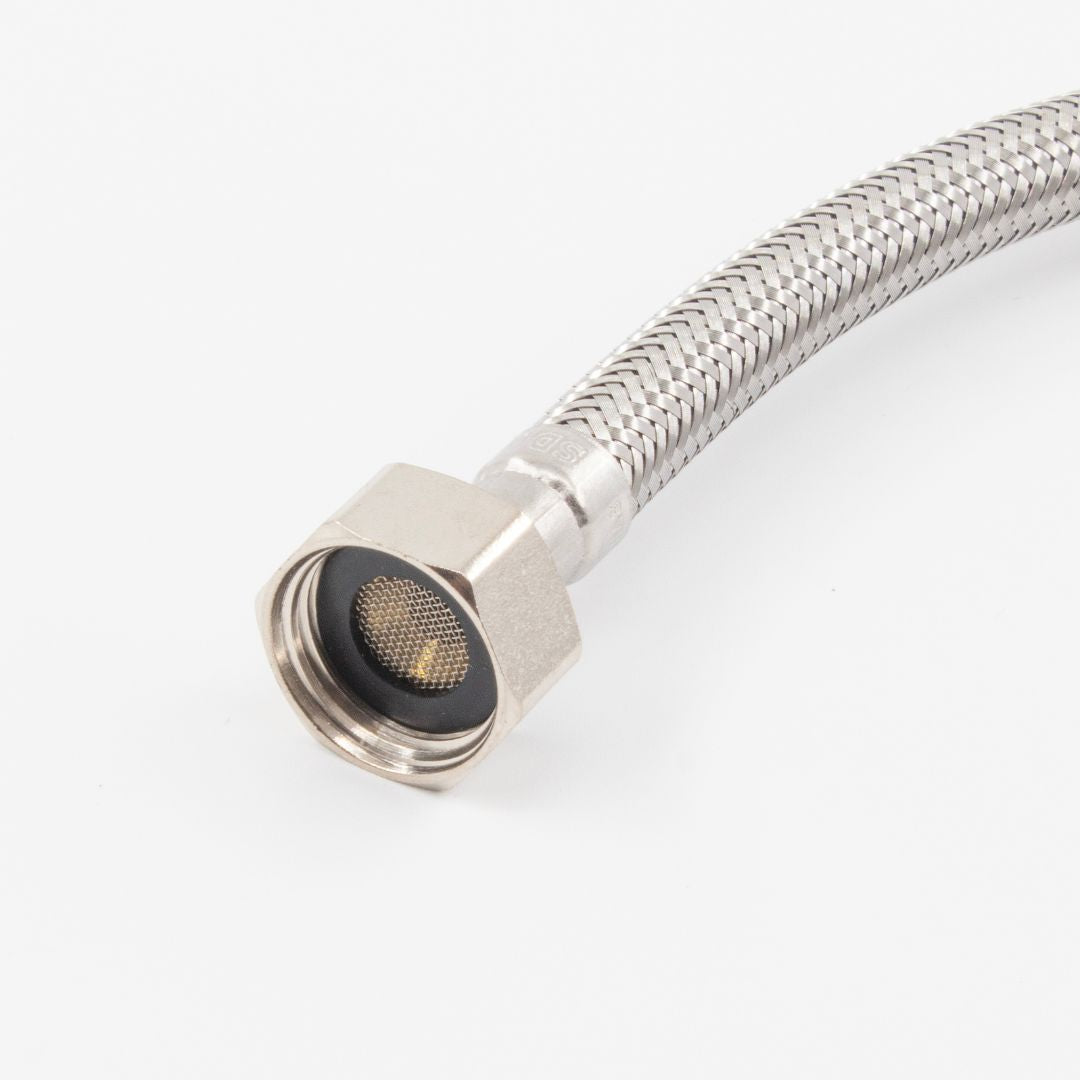

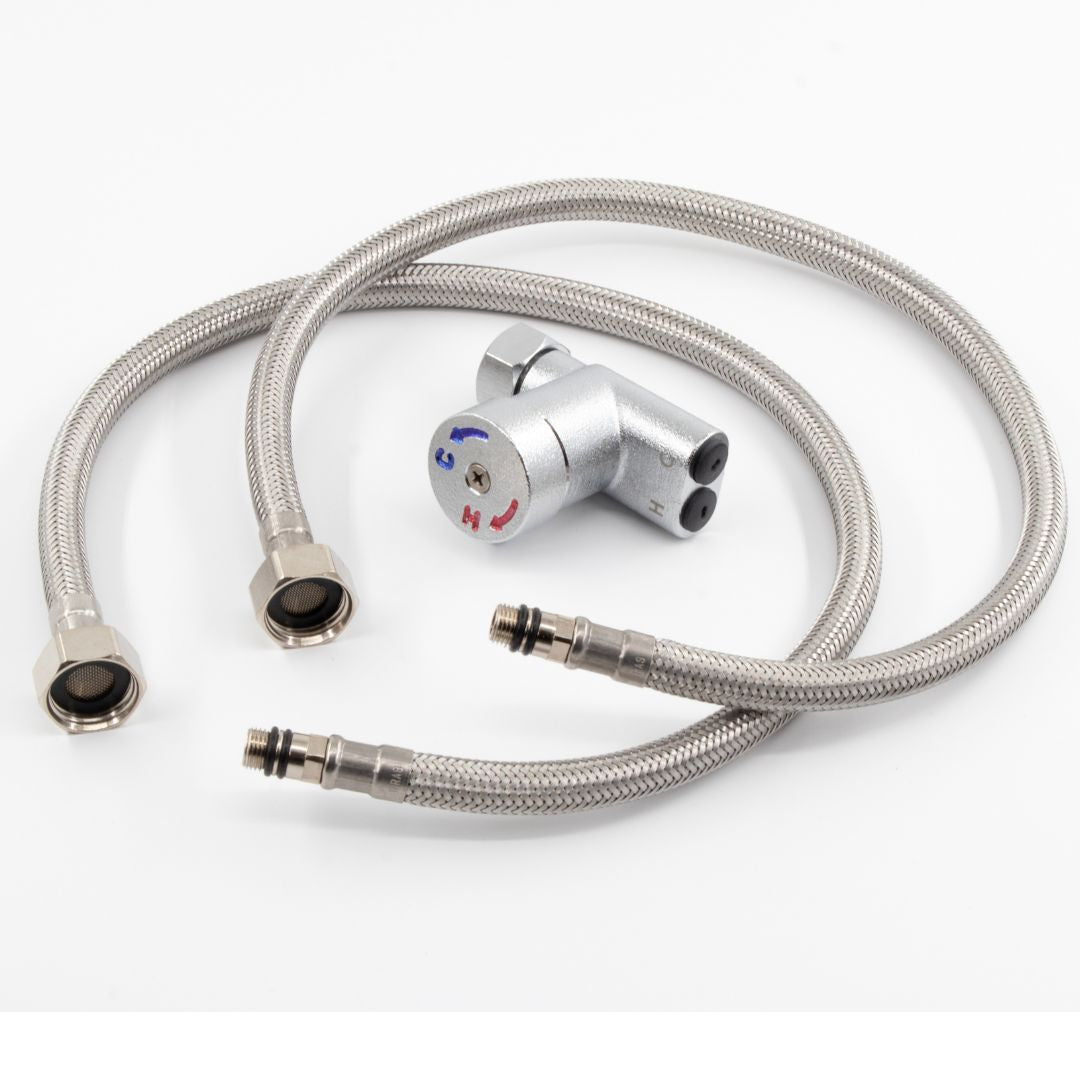

• Inlet connector size: G 1/2" (pipe length: 400mm)
• Outlet connector size: G 1/2"

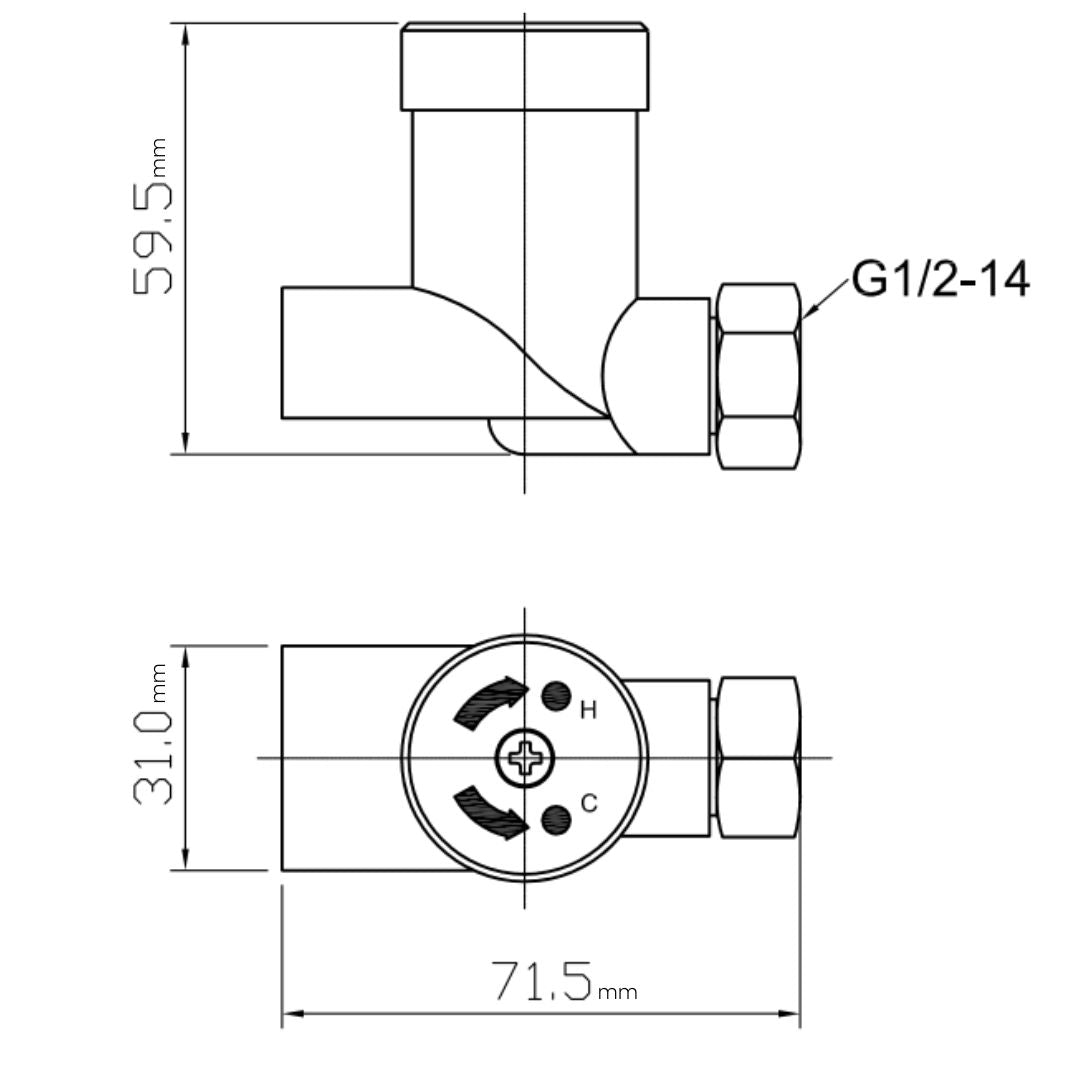

• Dimensions: H59.5 x W31 x L71.5(mm)
• Weight: 0.31Kg
• Water supply pressure: 0.5 - 6 Bar
• Max Static pressure: 10 Bar
• Flow rate at 0.1MPa Dynamic Pressure: 8.4L/min
• Flow rate at 0.1MPa Static Pressure: 6.4L/min
• Flow rate at 0.3MPa Dynamic Pressure: 15.8L/min
• Flow rate at 0.3MPa Static Pressure: 12.5L/min

Manually premixes hot and cold water for automatic sensor taps that are not fitted with a mixer on the tap.

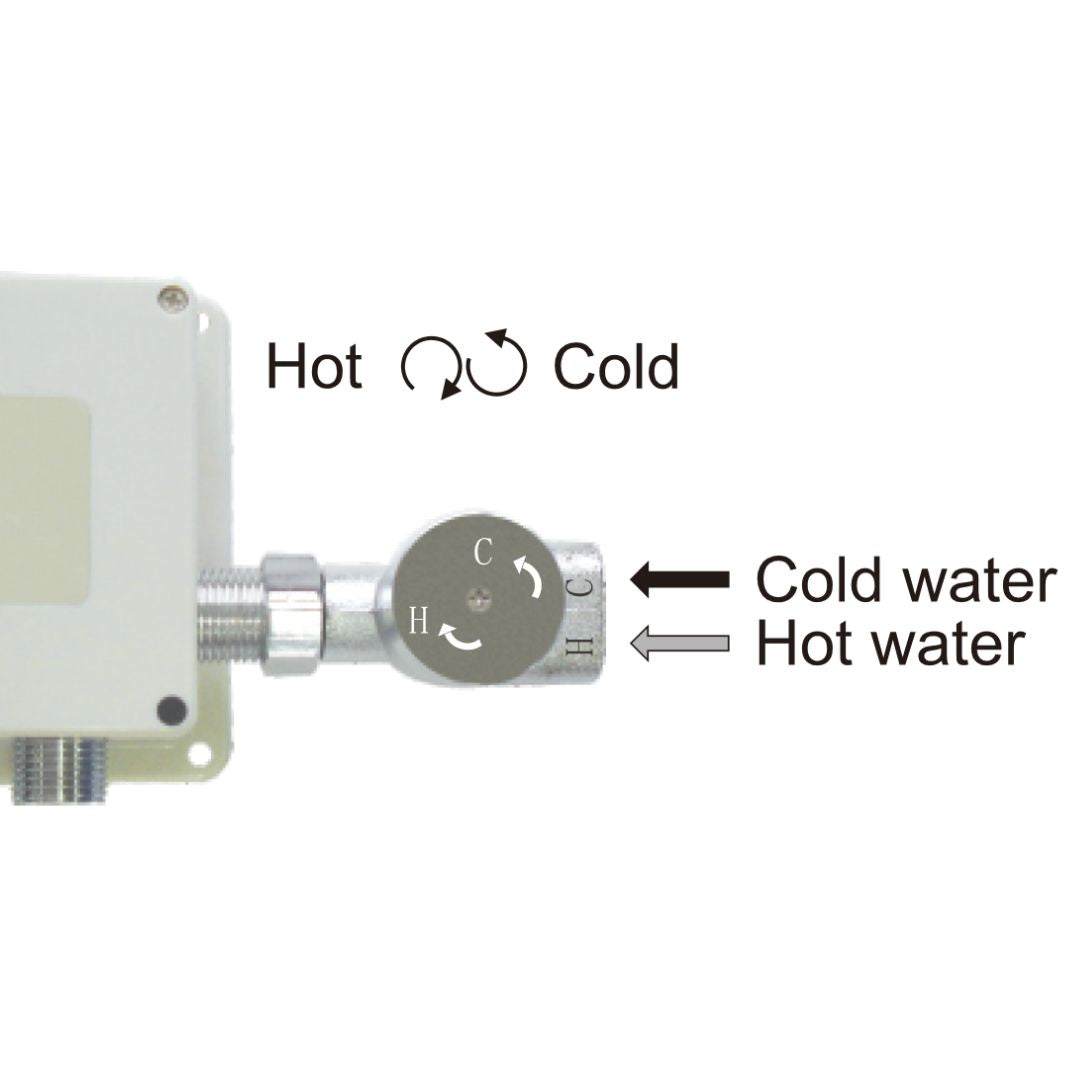

The mixing valve rotates clockwise to add more hot water to the mix or rotates counterclockwise to add more cold water until the desired temperature is reached.

A built-in check valve prevents hot and cold water from flowing back and forth.
