Be-Line® WC Doc M pack with backrest 511809

Grab Bar package for Doc M compliant Unisex Washroom. Meet Document M requirements. Rounded profile with an ergonomic flat front face that prevents rotation for optimal grip and comfort.

Aluminium grab rails are available in a Metallised Grey or Matte White Powder-Coated finish

10 years warranty

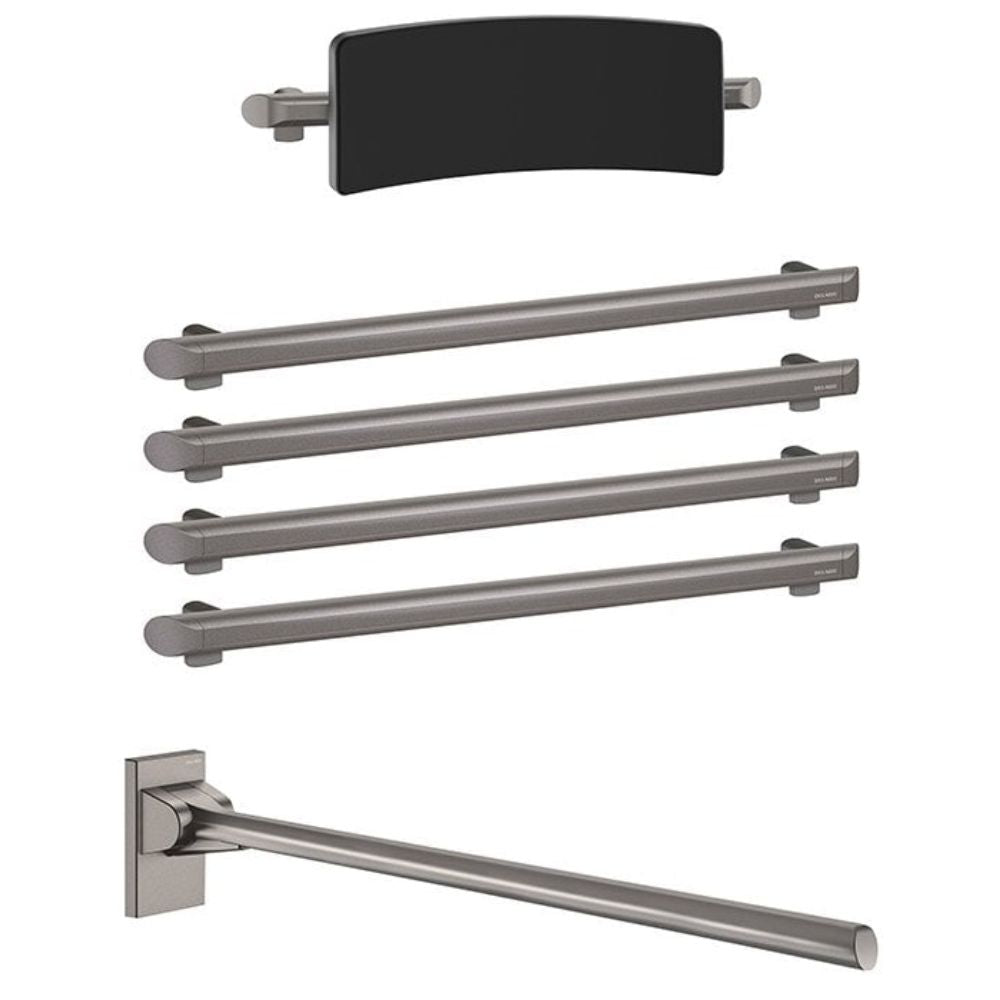

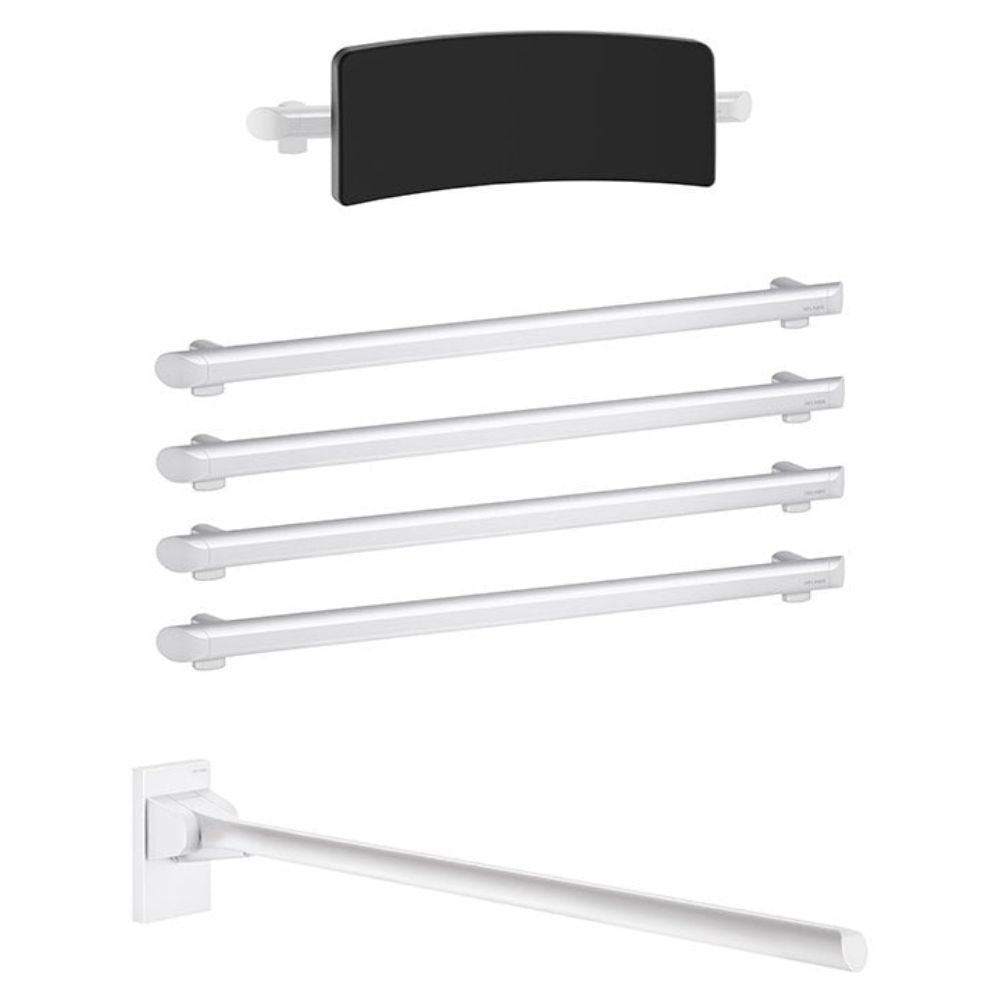

Pack includes:

• 4 x Be-Line® DOC M grab bar, 600mm (511906)
• 1 x Be-Line drop-down support rail, L. 850mm (511964)
• 1 x Be-Line® comfort backrest for WCs, depth 150mm (551928)

Straight Grab Bars

• Weight resistance: Tested to over 200kg. Maximum recommended user weight: 135kg
• Bar diameter: Ø 35mm
• Clearance between bar and wall: 60mm

Drop-down grab bar

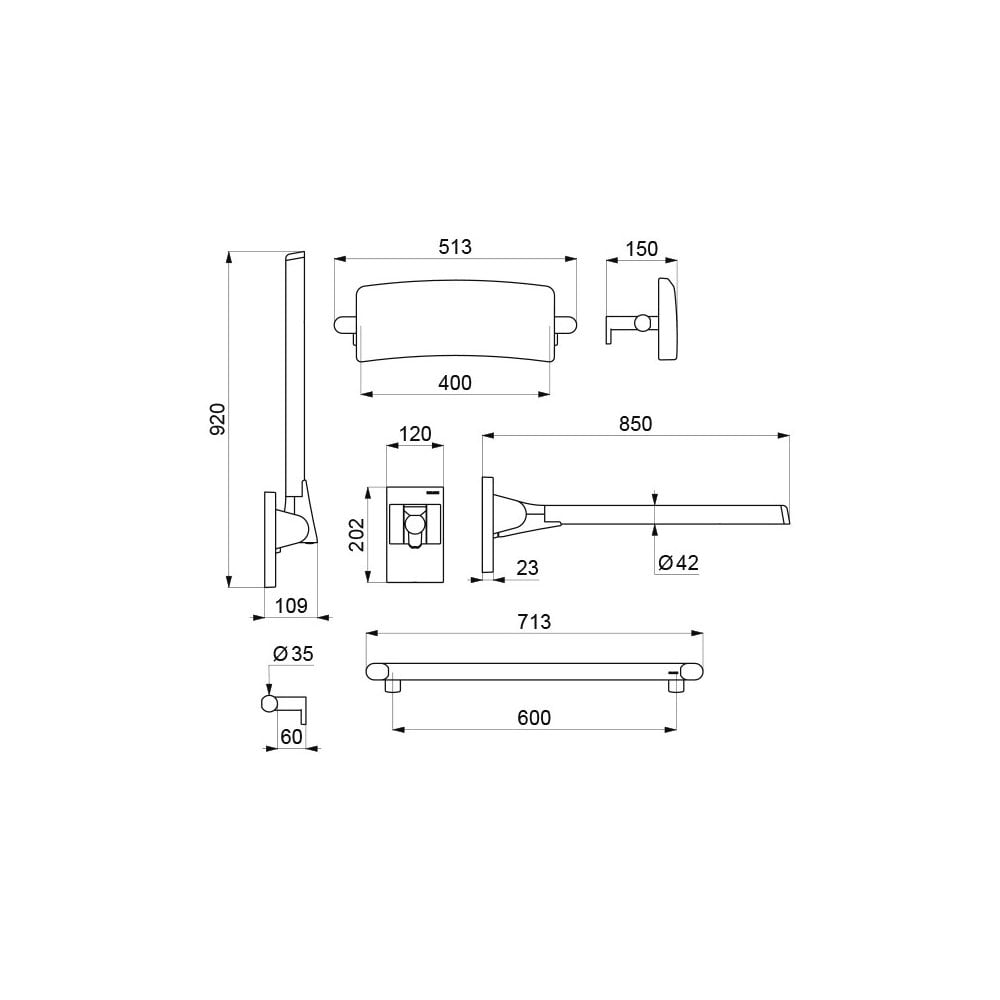

• Total dimensions: 850L x 210H x 120W (mm)
• Weight resistance: Tested to over 200kg. Maximum recommended user weight: 135kg
• Bar diameter: Ø 42mm
• Removable: Easy to Unclip (Anti Theft Locking System) allowing installation only when required

Grab Bar with Padded Back Rest

• Dimensions: 150 x 583 x 173mm
• Clearance to wall: 150mm

Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.

See the Spec Sheet in the downloads section below for more information

This grab rail pack is designed for Doc M regulations. The four 600mm aluminium grab rails with 35mm diameter and 60mm clearance from wall are an innovative design for all. The 60mm gap between the bar and the wall gives minimal space to prevent the forearm from passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.

The 850mm drop-down bar can be removed when not in use and is great for places such as hotels or B&B's as it provides short term accommodation for the disabled without having to invest the space long term.

The Be-Line® comfort backrest for WCs is for people with reduced mobility. It prevents the user from falling backward. The flexibility of the polyurethane aids comfort.
