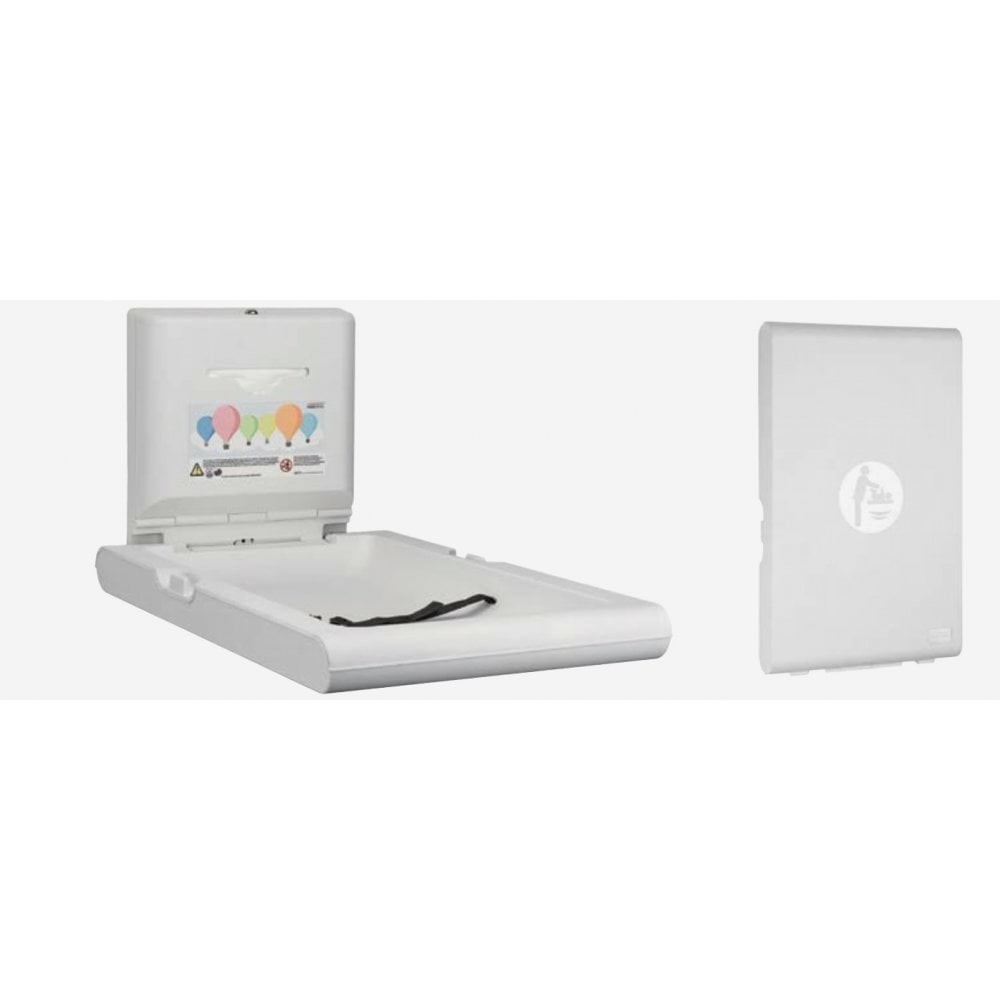

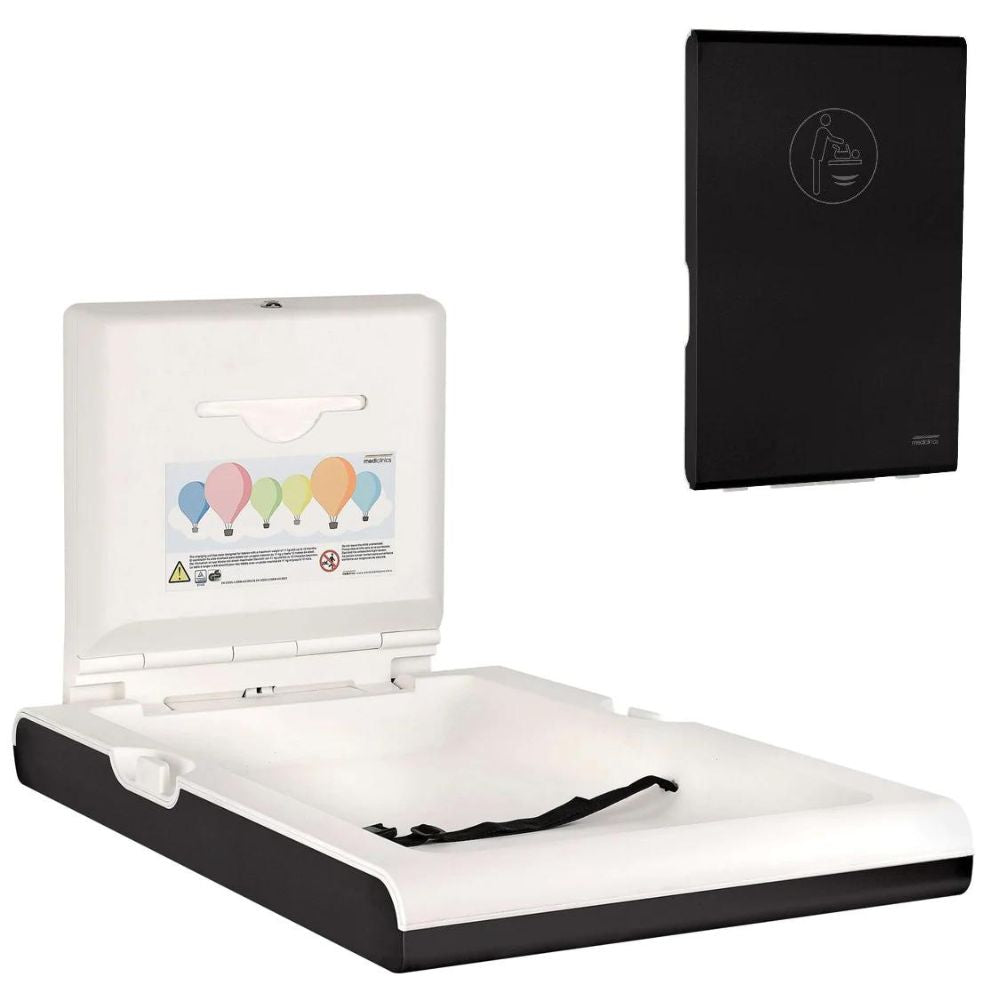

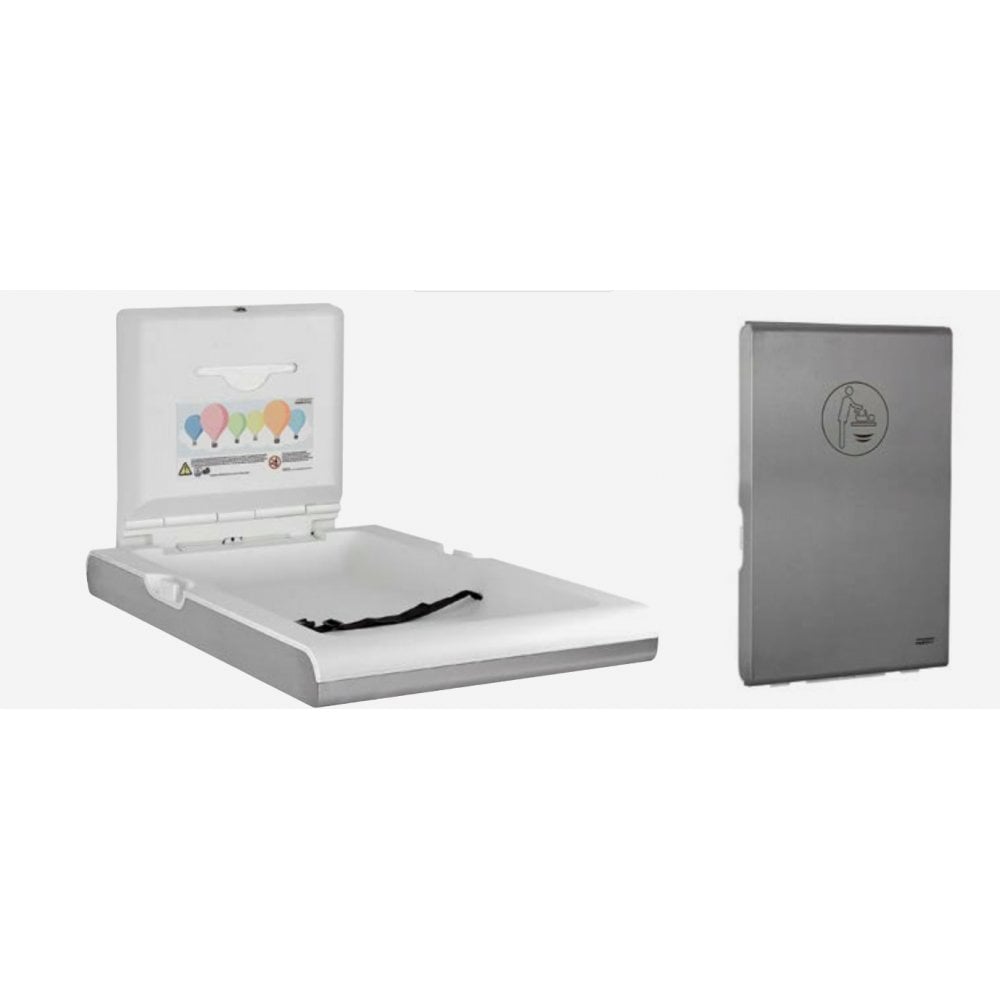

BabyMedi® Vertical Baby Changing Station - Polypropylene / Stainless Steel

• Dimensions: 480 (H) x 550 (W) x 100 close / 890 open (D) mm

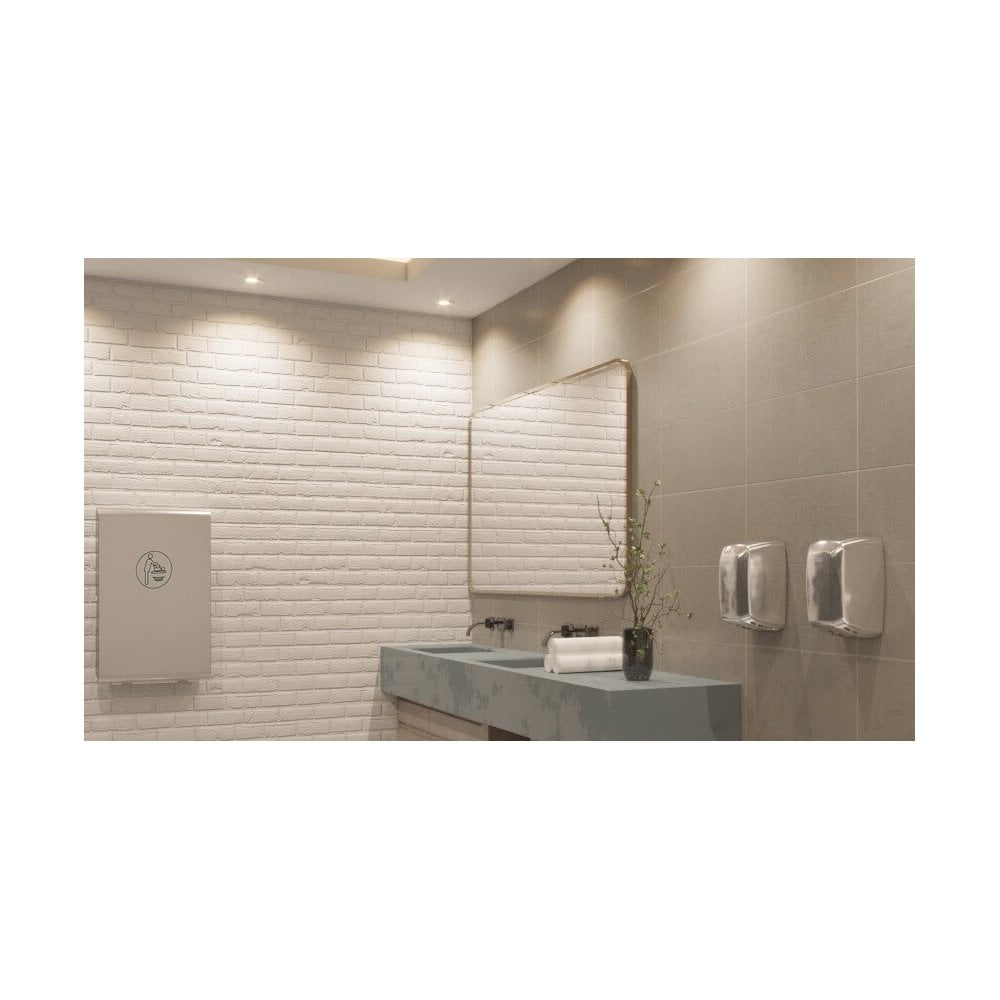

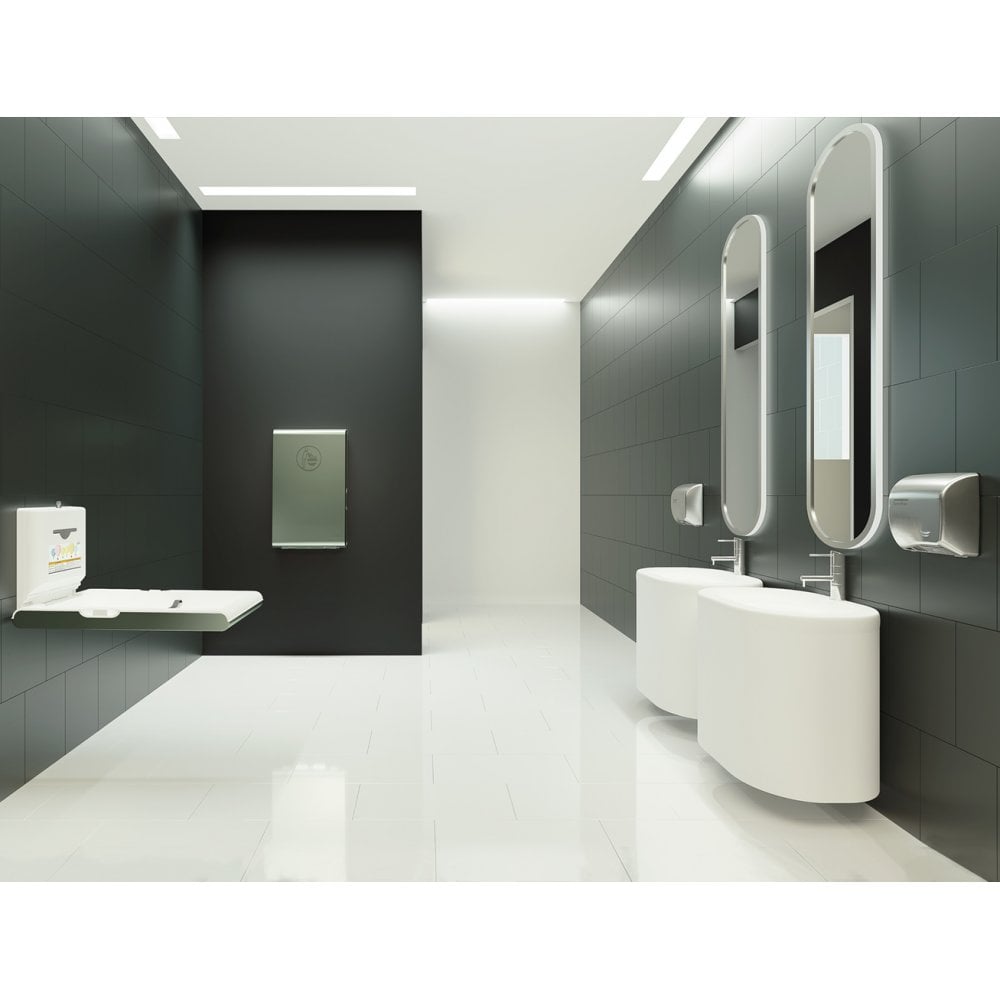

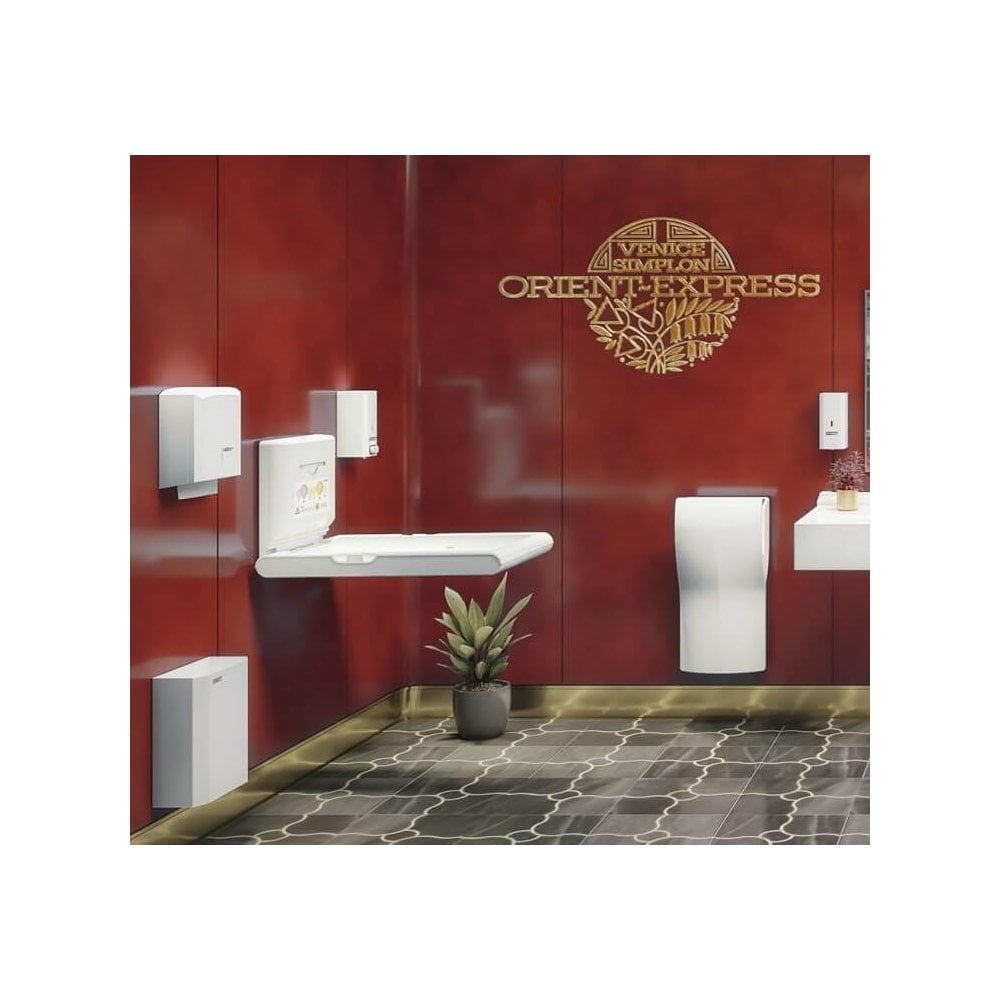

• Robust and durable. Ideal for high traffic locations like shopping centres, airports, public buildings etc
• Fully comply with the EN 12221-1 and EN 12221-2 standards that require baby changing stations be able to support a 50 Kg static load test during one hour
• Tested in Mediclinics own laboratories to withstand loads over 100 kg.
• Certified by ASTM: For children up to 3.5 years and less than 50lb (22Kg)
• EN 12221-1:2008+A1:2013 Type 1 compliant: recommended weight up to 11 kg and babies up to 12 months
• 1900 cm2 contoured changing surface made of white polypropylene with Biocote® antimicrobial additive
• Open/close mechanism: consists of a pair of reinforced hinges and a pneumatic cylinder, ensuring high durability and a smooth opening and closing
• Lockable bed liner dispenser with capacity for 80 items
• Guarantee: 2 years

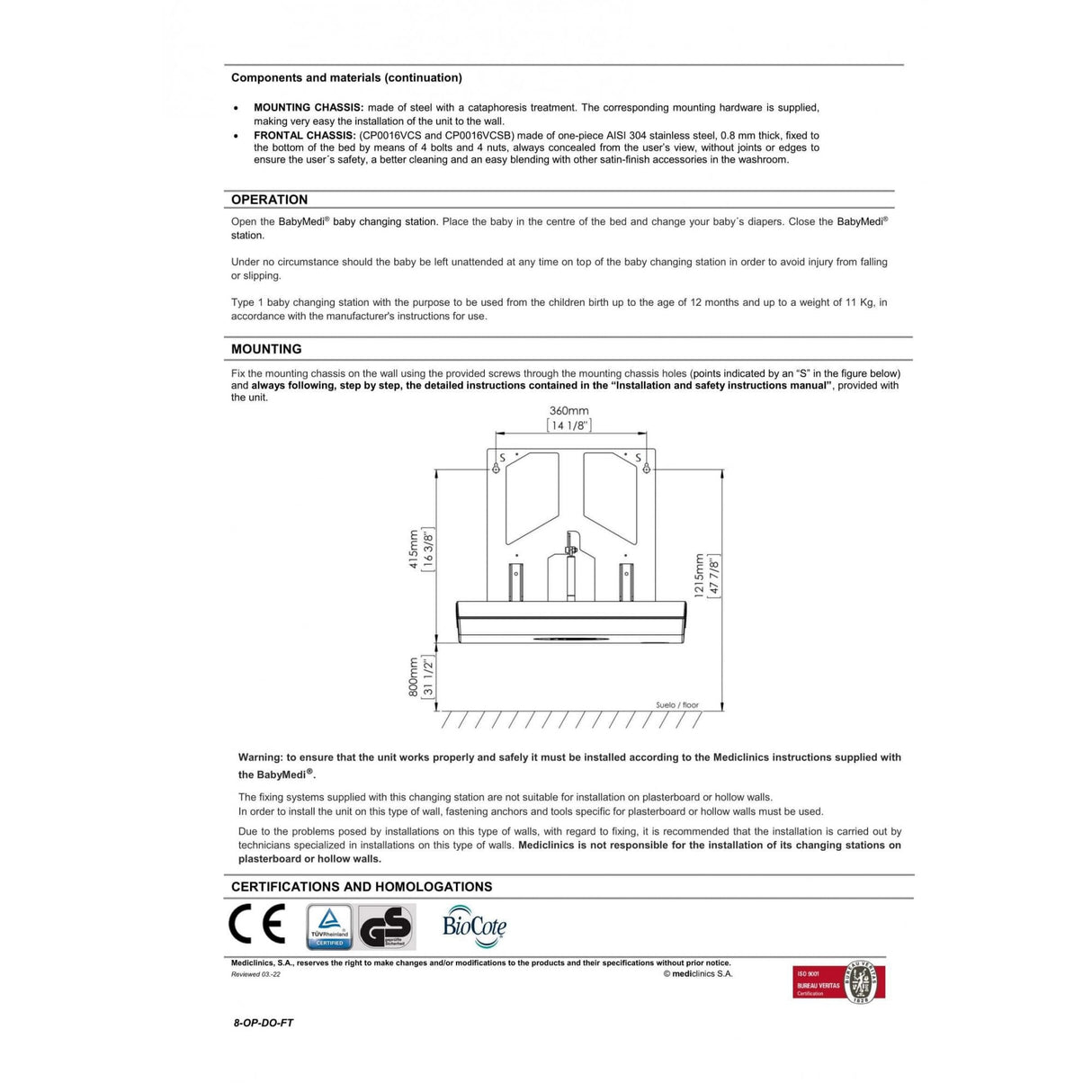

• Mounting: Wall surface (concealed fixings) easy installation
• Nylon child protection straps included

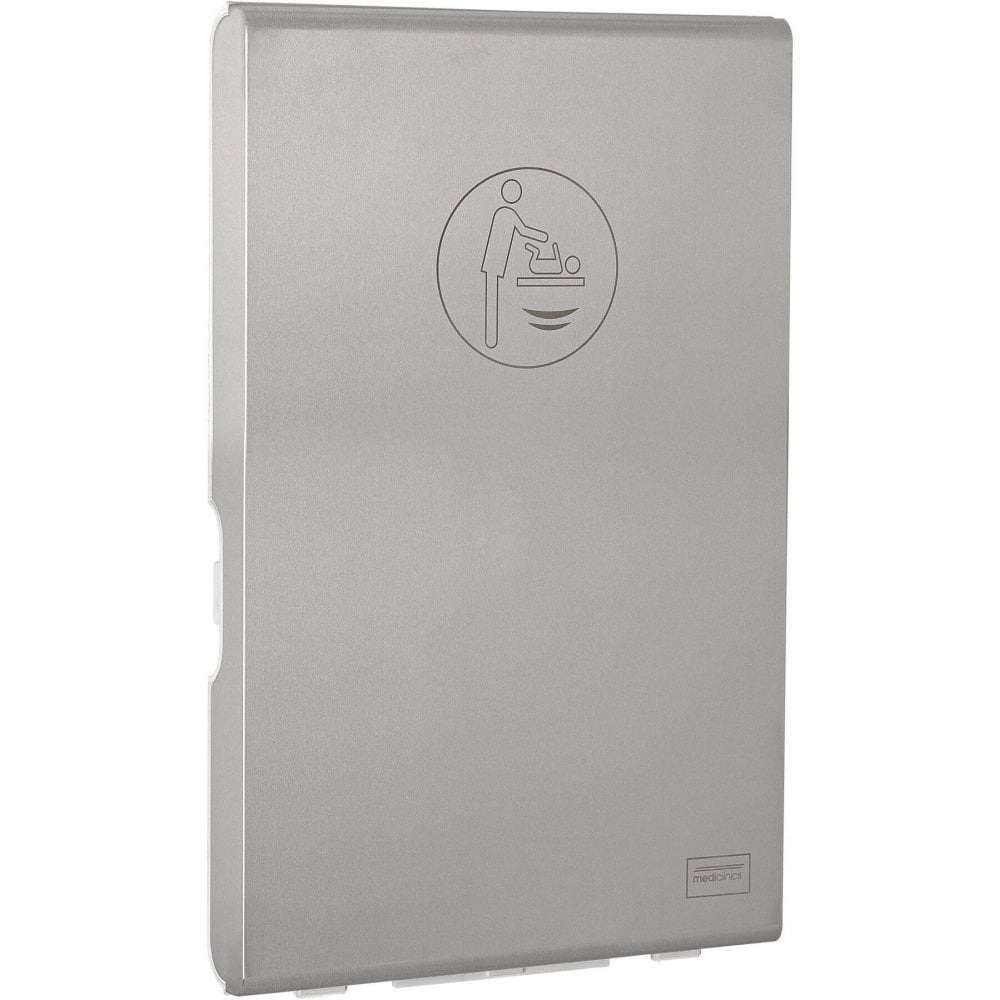

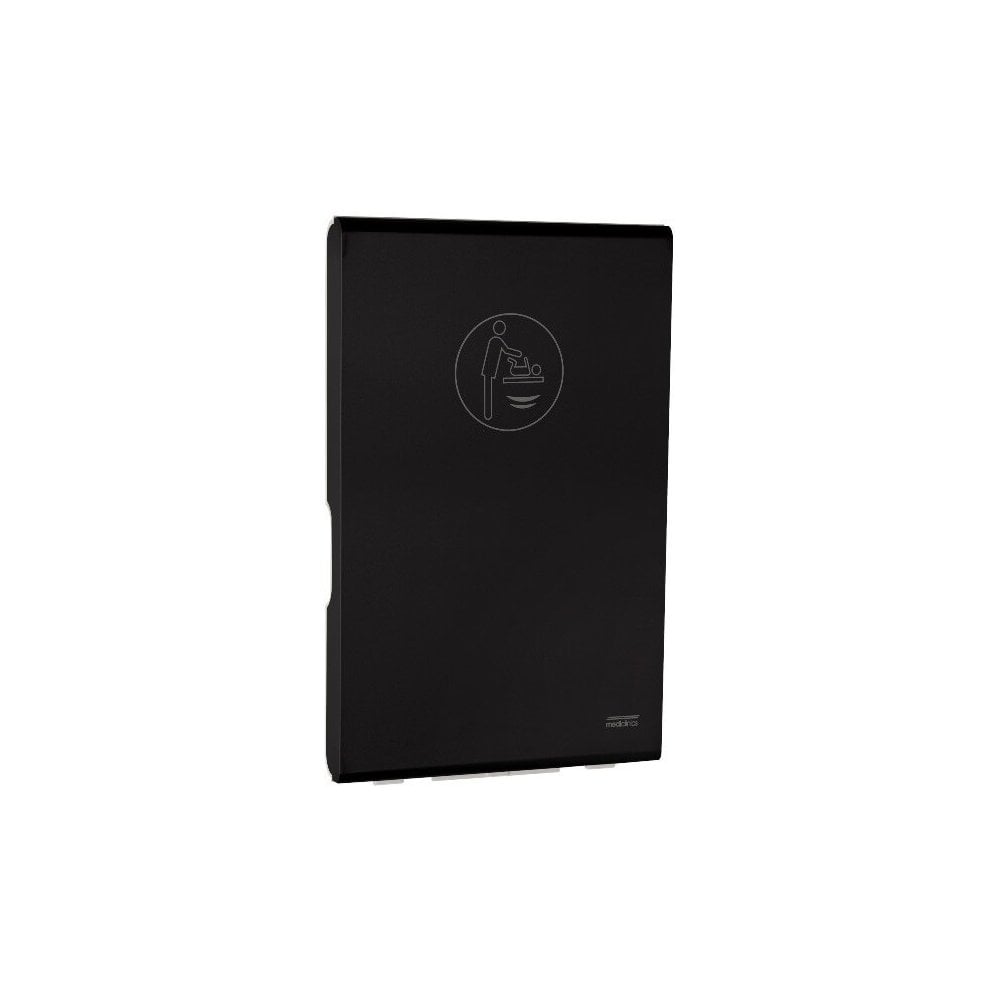

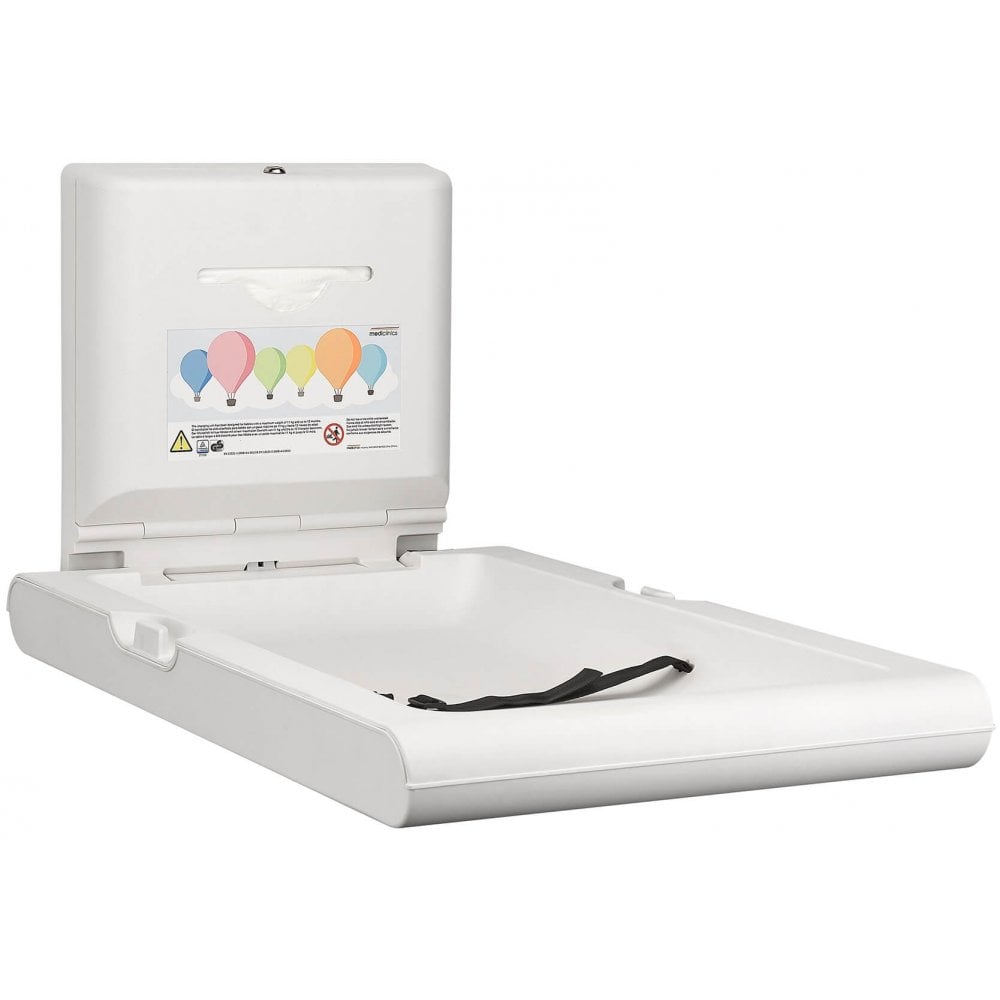

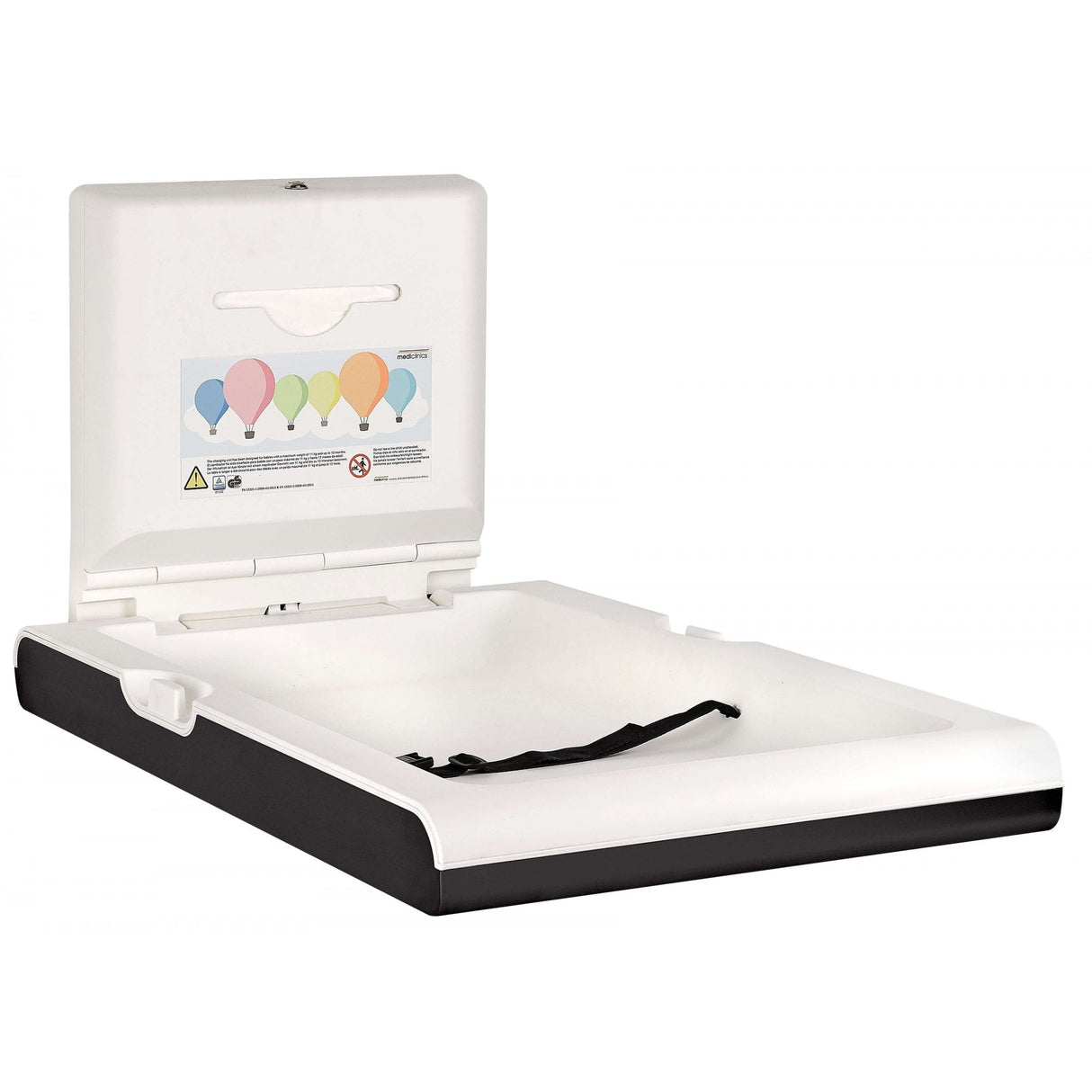

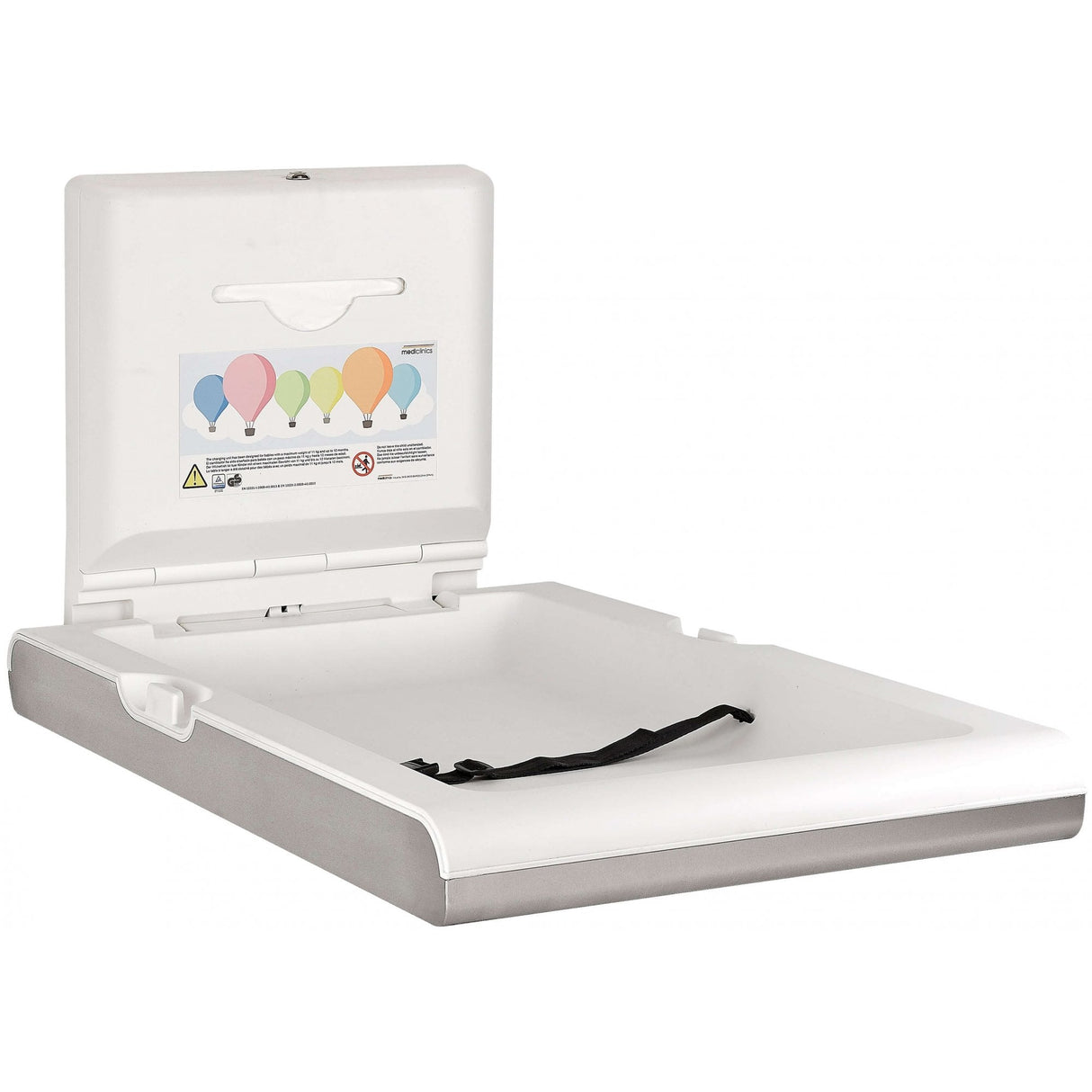

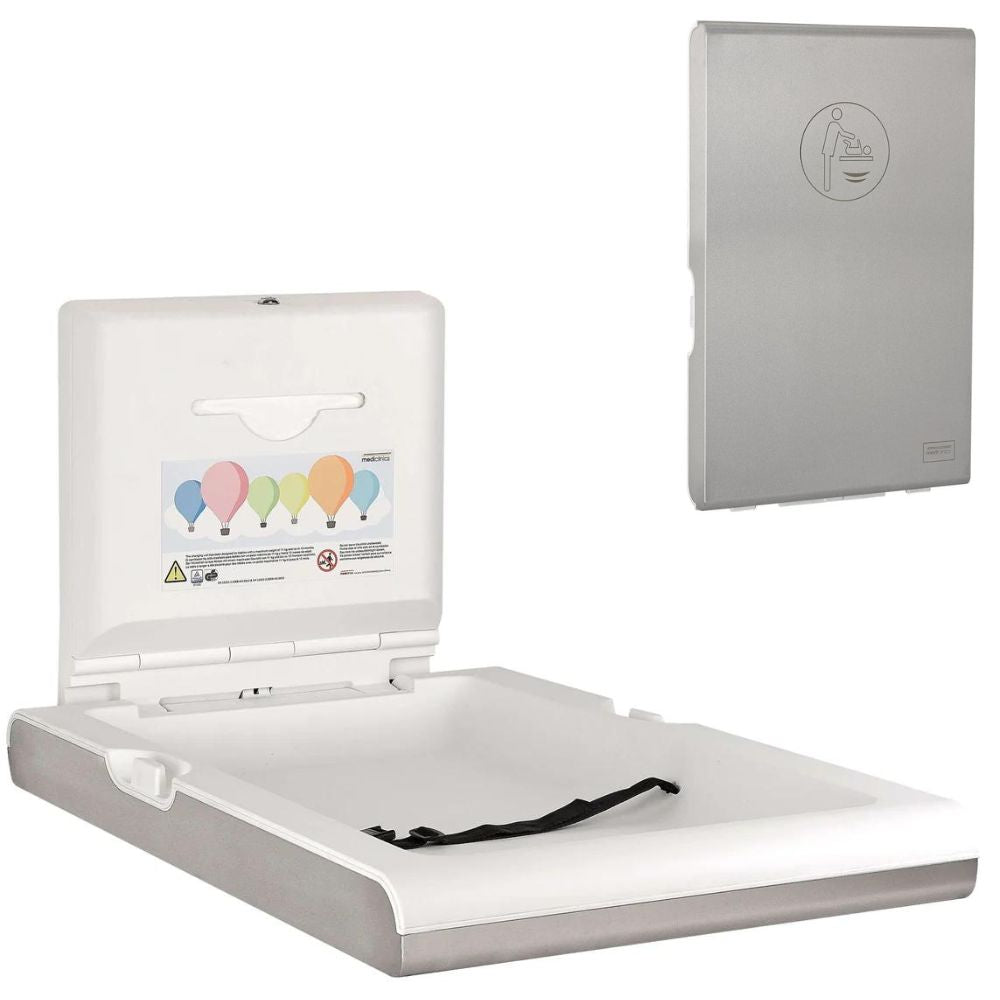

• Cover materials: White: polypropylene | brushed satin or black: one-piece 304 stainless steel
• Two bag hooks to keep personal belongings close at hand
• Manufacturers Codes: CP0016V | CP0016VCS | CP0016VCSB

Designed for combining maximum convenience for both users and staff with highest safety and outstanding durability, BabyMedi® vertical changing unit is the ideal choice for busy commercial facilities with trendy décor. The brushed satin stainless steel cover ensures vandalism resistance as well as an easy to match contemporary finish. Its white polypropylene contoured bed surface incorporates the Biocote® additive in order to reduce bacterial growth and therefore diminishing resulting odour and stains. BCP16VE is fully compliant with the main international manufacturing standards (CE, GS, TUV), integrates one nylon belt for the child and resists a static load of 50 Kg (even over 100 Kg as the supplier tested), yet displays a sleek profile.

Minimising replenishment and discouraging misuse, the baby changer also incorporates one lockable bed liner dispenser with capacity for up 80 items. For visitors' comfort, the baby changing table includes two bag hooks. Please note that the package includes not only the necessary fixing material, but also a concealed mounting chassis with a cataphoresis treatment that grants a longer product life. Among other parts, the back plate is composed by two reinforced hinges and a pneumatic cylinder, which guarantees a smooth operation when opening.

Warning: to ensure that the unit works properly and safely it must be installed according to the Mediclinics instructions supplied with the BabyMedi®.

The fixing systems supplied with this changing station are not suitable for installation on plasterboard or hollow walls.

In order to install the unit on this type of wall, fastening anchors and tools specific for plasterboard or hollow walls must be used.

Due to the problems posed by installations on this type of walls, with regard to fixing, it is recommended that the installation is carried out by technicians specialized in installations on this type of walls. Mediclinics is not responsible for the installation of its changing stations on plasterboard or hollow walls.

GS Certificate -Babymedi-CP0016H-HCS-CP0016V-VCS

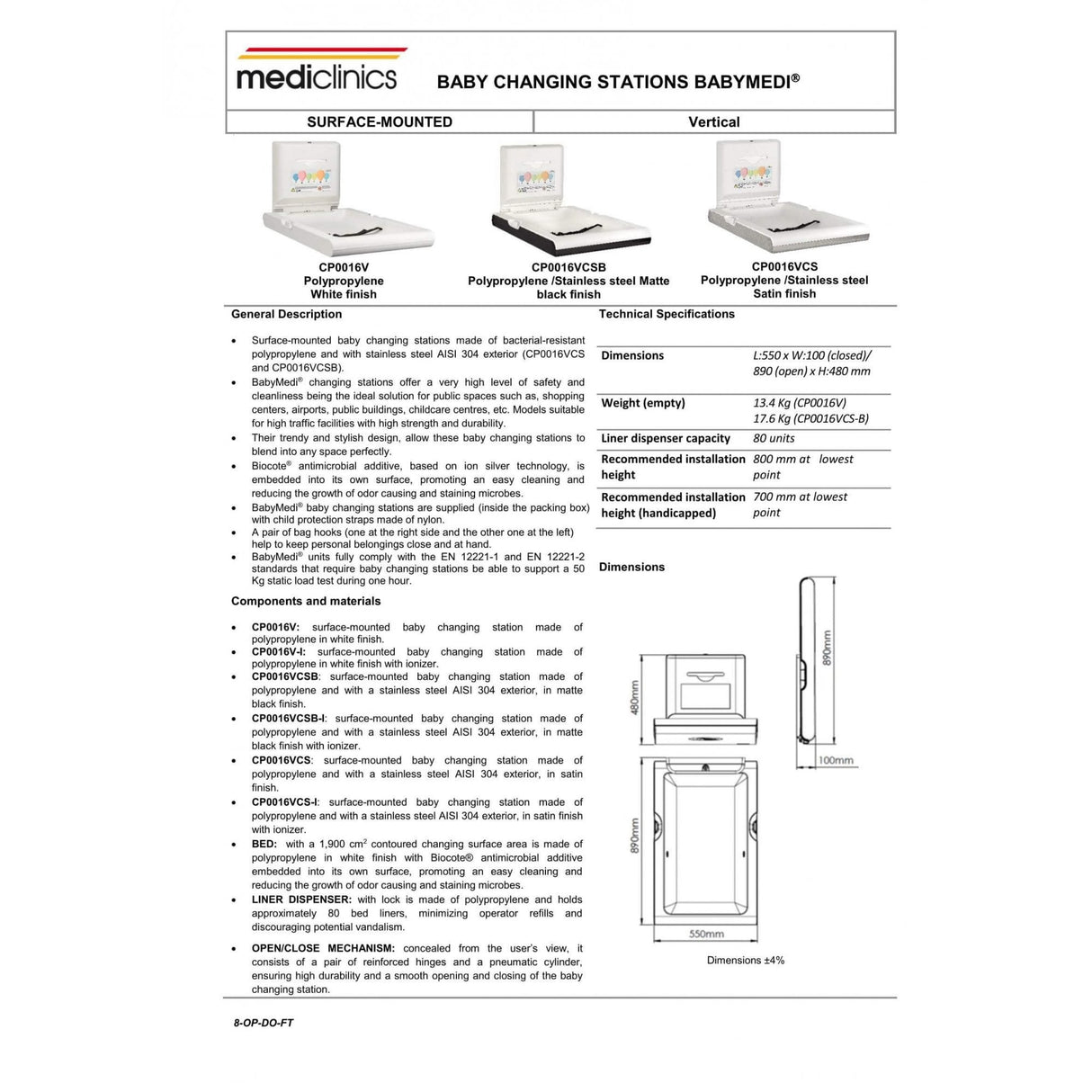

Spec Sheet - Mediclinics Vertical Baby Changing Station CP0016V_VCS _VCSB (PDF)
Install and User Manual - Mediclinics Vertical Baby Changing Station CP0016V_VCS _VCSB (PDF)
Outline Drawing - Mediclinics Vertical Baby Changing Station CP0016V_VCS _VCSB (PDF)
ASTM Certificate BabyMedi CP0016V-CS
