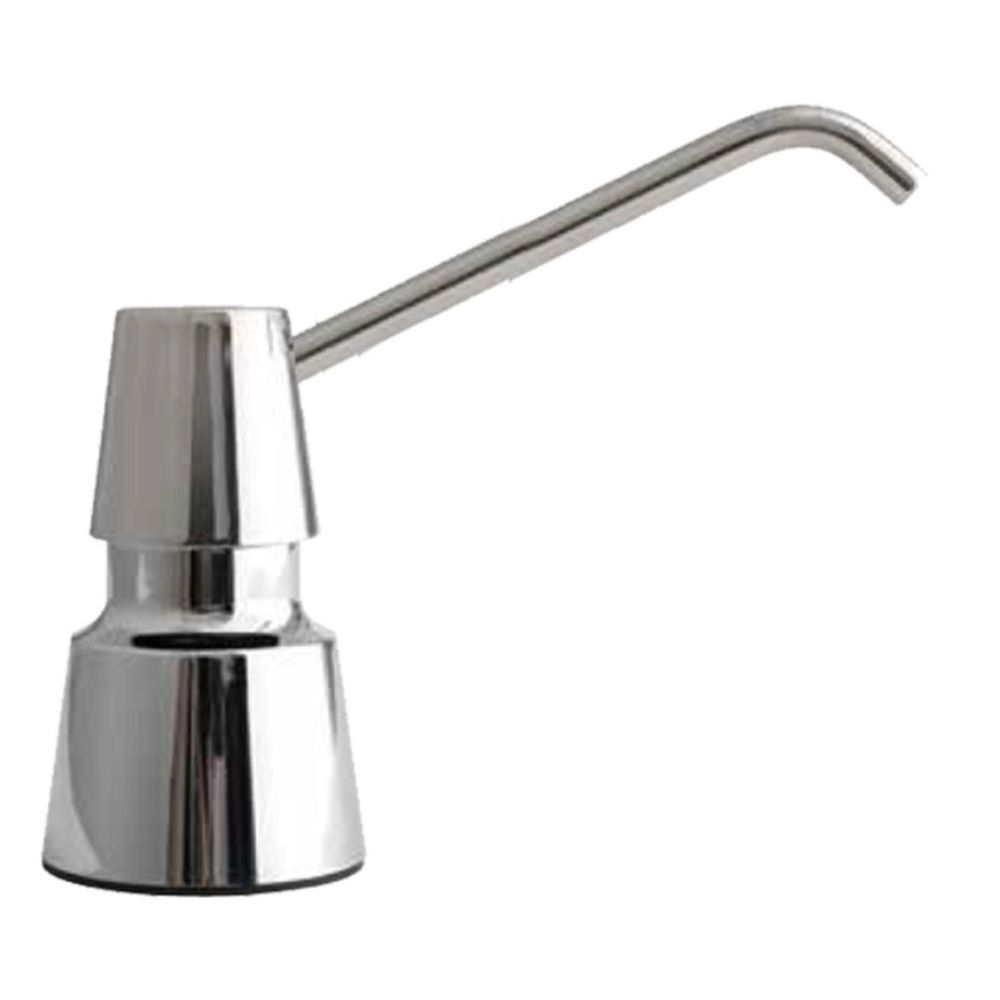

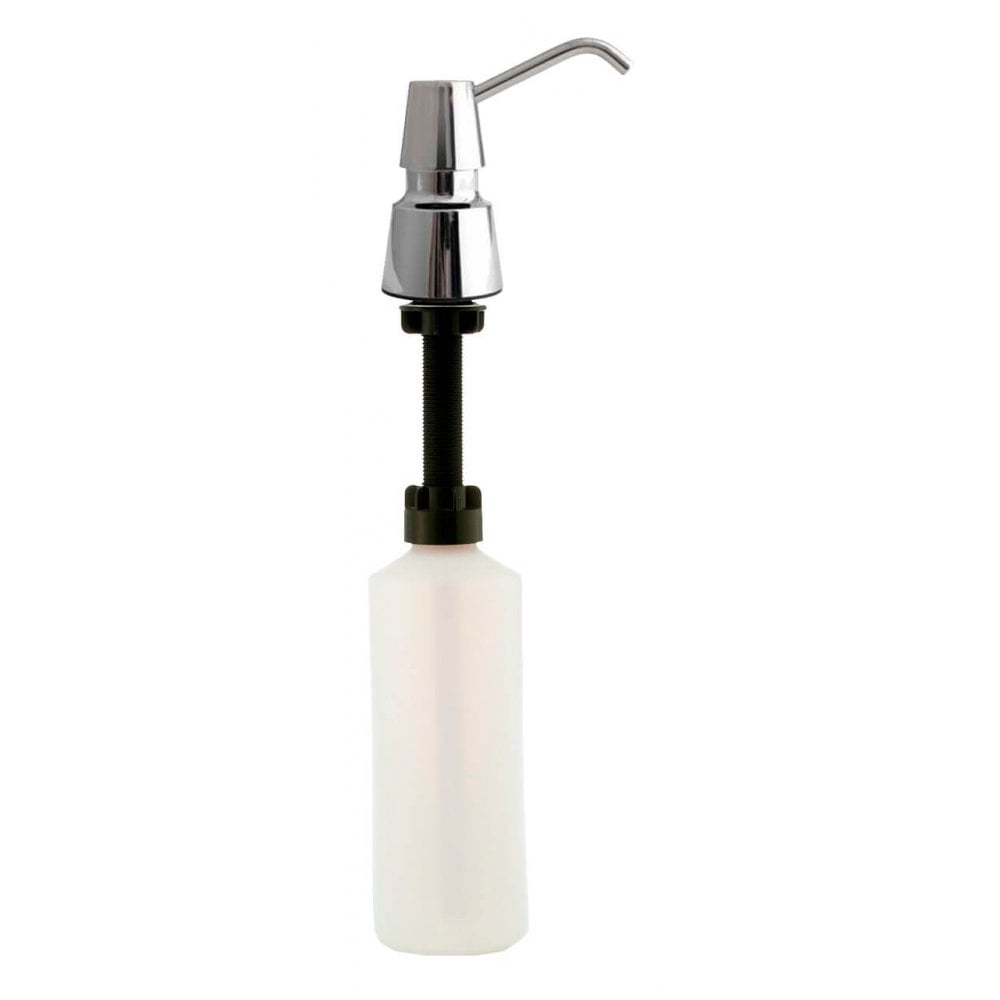

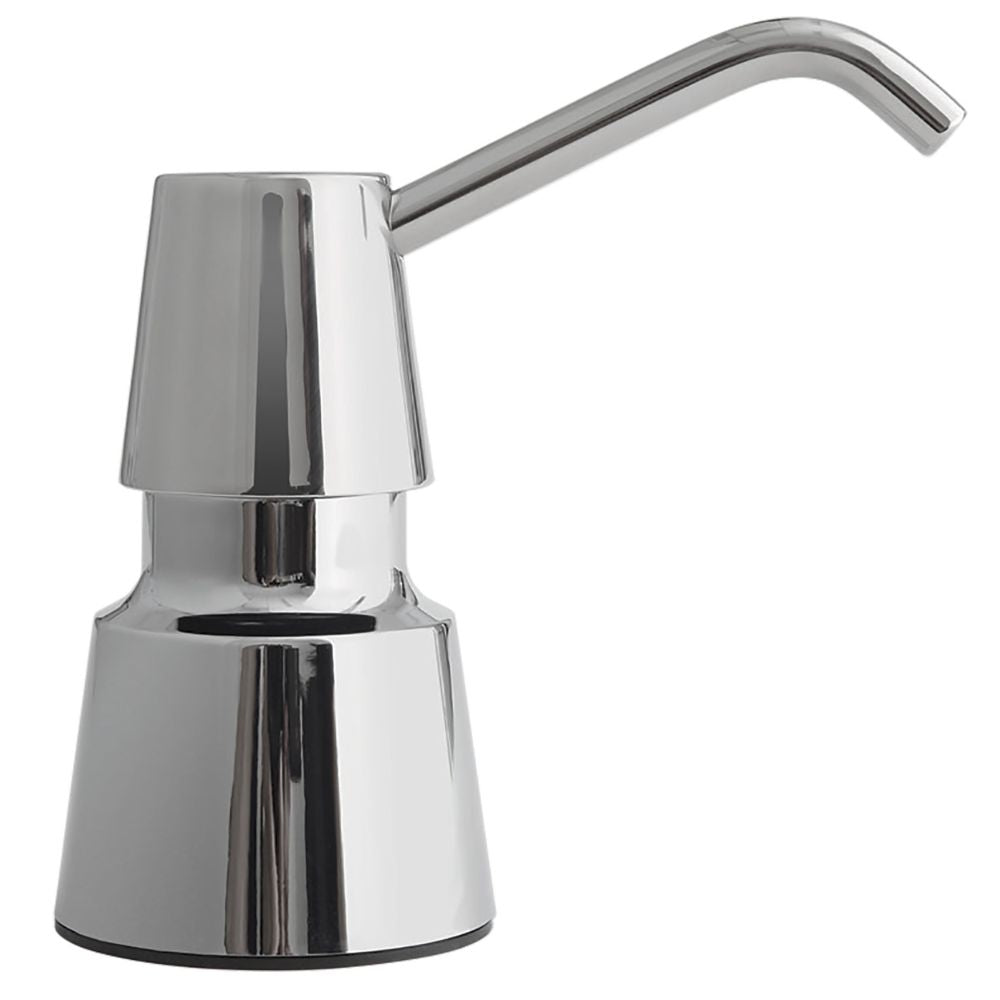

B-823 / B-8236 Counter Foaming Soap Dispenser (100 or 150mm Spout)

• 1L capacity

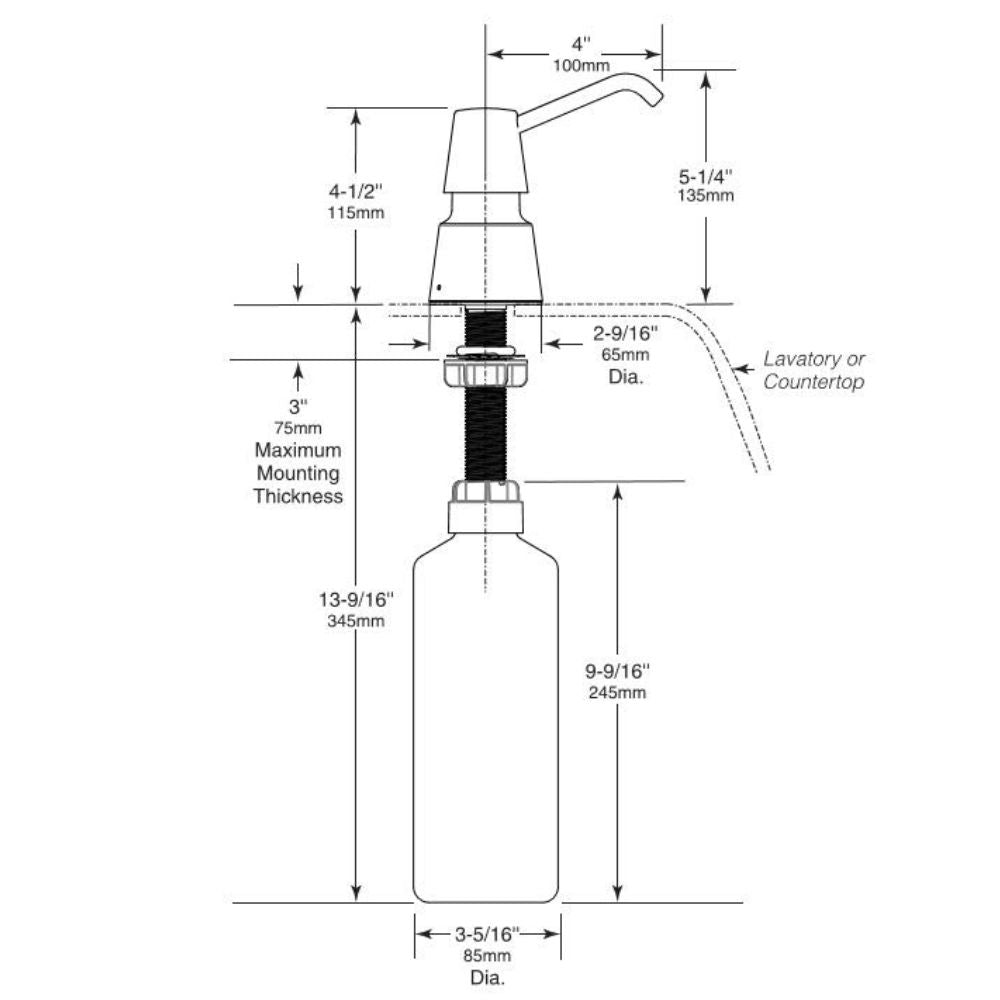

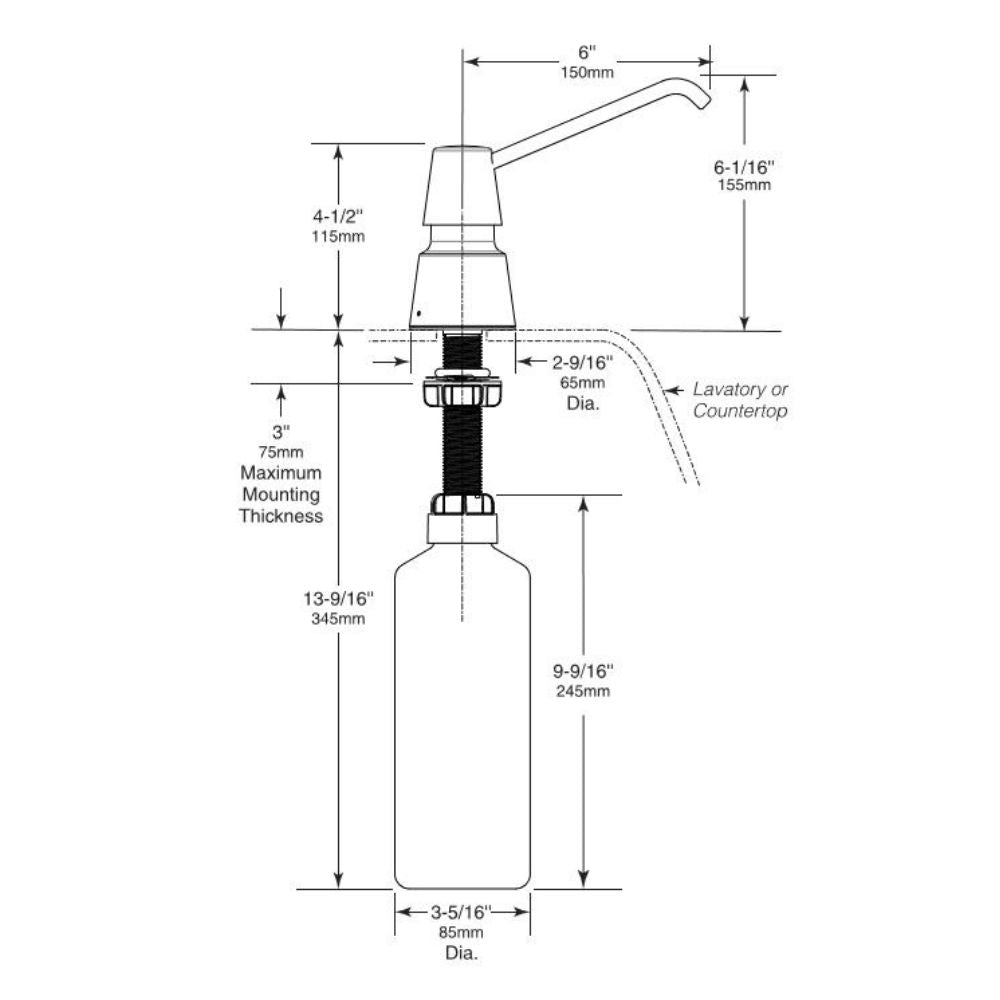

• Dimensions: Main body 115mm (H) x Ø 65mm; Spout 100mm / 150mm (L) x 135mm / 155mm (H)
• Output per dispense: 7ml of foam using 0.5 ml of liquid
• Guarantee: 3 years
• Hole diameter in lavatory or counter: Ø 25mm
• Minimum distance between center of hole and edge of sink: 38mm
• Countertop max. height: 76mm
• Clearance for the container under the counter: 85mm
• Materials: bright polished stainless steel (spout, cover shell, springs), chrome-plated ABS (escutcheon), acetal (cover spacer, body, foam pump, shank, valve & piston), red polypropylene (integrated funnel), polyethylene (container).
• Recycled metal: 50%-70%
• Bob key is furnished

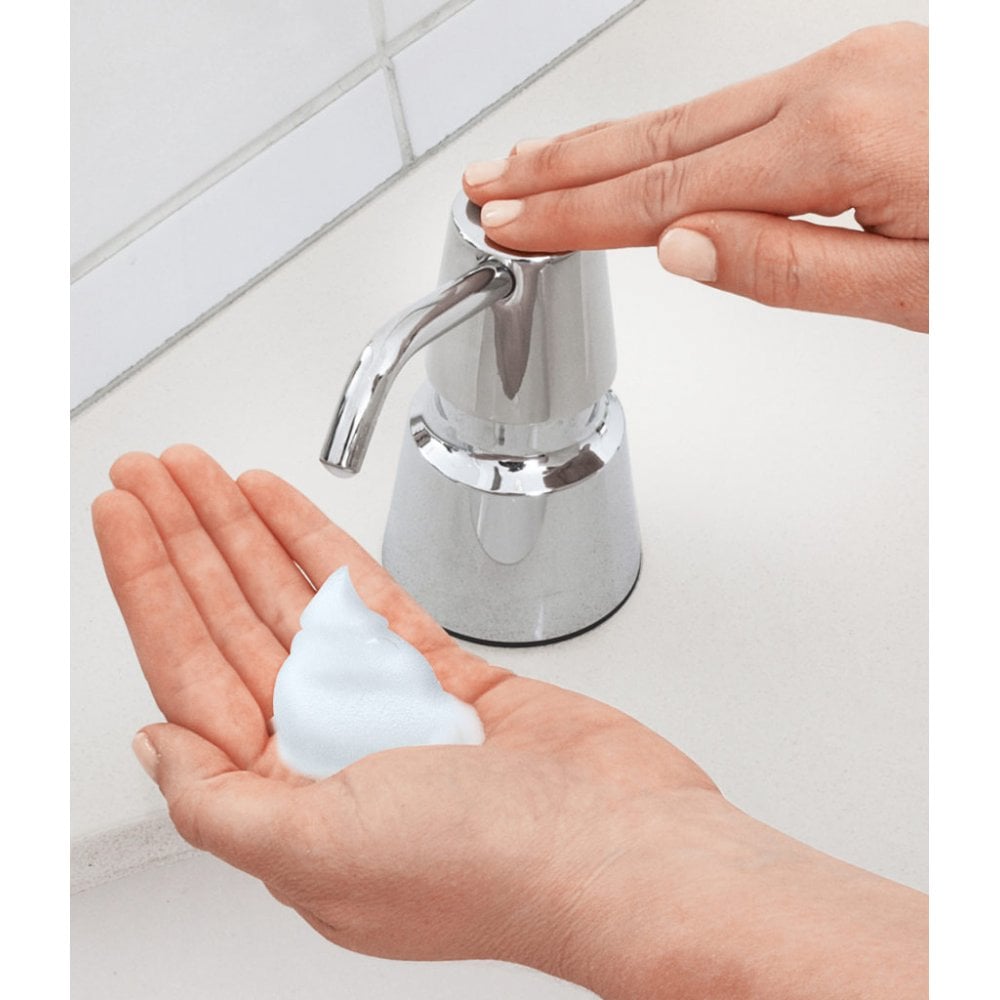

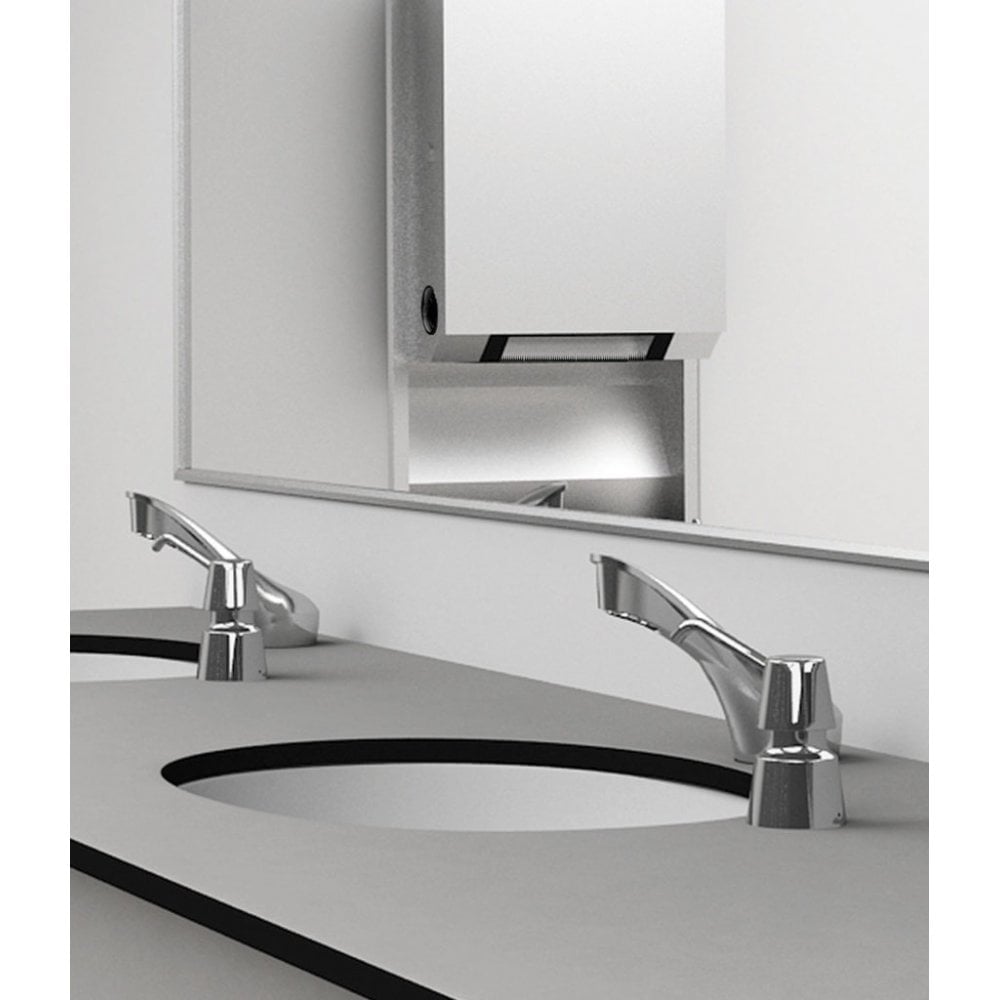

Bobrick B-823 and B-8236 foaming soap dispenser with an easy to match bright polished finish are a cost saving yet elegant manual solution for lavatories or adjacent countertops. The design of the item allows to save on soap, staff time and water, plus it comes with a 3-year guarantee for an added peace of mind. Its compatibility with any all-purpose foam hand soap dramatically reduces costs and purchase hassle. Every shot requires 0.5 ml of bulk foam soap, which produces the remarkable amount of 7ml of foaming hand soap. In comparison with liquid soap or cartridge foam, bulk foam soap generates more hand washes and, during each hand wash, more lather is generated as well as less consumable ends up wasted. Besides beneath countertop refilling, one can replenish from top, significantly speeding up the process. Fear not vandalism, since the 100mm or 150mm spout can rotate up to 360° without any damage to the valve.

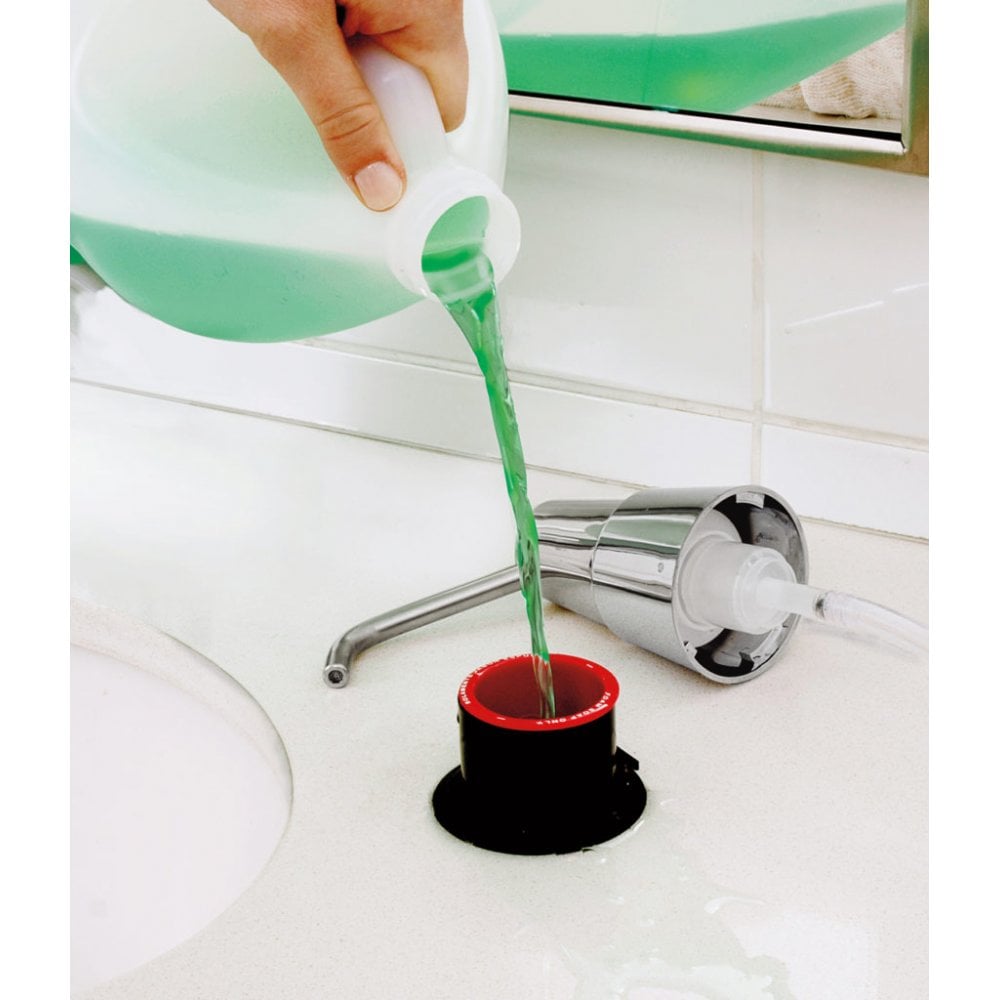

Please note that when first using the dispenser, it will need to be pumped several times for the soap to go through the entire unit (up to 50 pumps in some installations). For top refill, just unlock the escutcheon with the bob key provided by rotating counterclockwise and pour the content through the red funnel on top of the shank. Bear in mind that for an appropriate maintenance, the soap pump must be flushed with warm water every six months.
